TJ01ET24C
Fibertel
Description

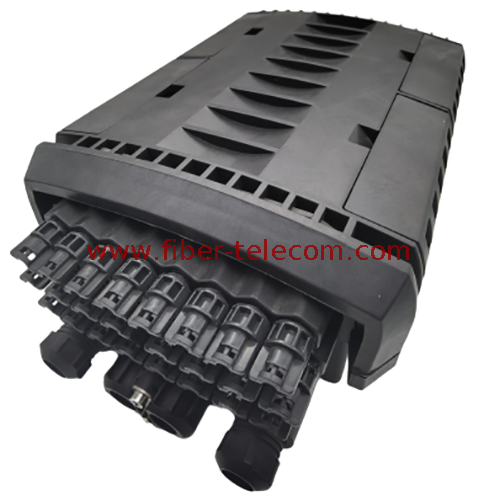

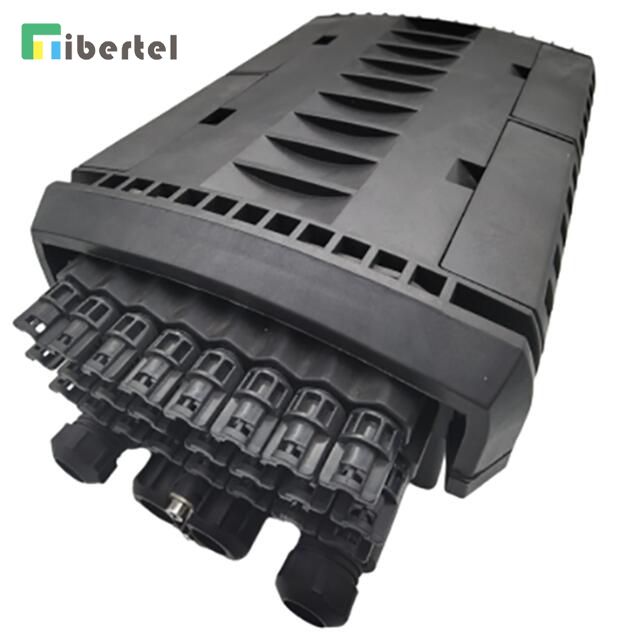

The TJ01ET24C Fiber Optic Terminal Box Water-proof IP68 is able to hold up to 16-24 subscribers and 96 splicing points as closure.
It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
Water-proof design with IP-68 Protection level.
Integrated with flap-up splice cassette and adaptor holder.
Impact test:IK10,Pull Force:100N,Full rugged design
All stainless metal plate and anti-rusting bolts, nuts.
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
2 pcs of 1*8 Splitter can be installed as an option.
Mechanical sealing structure and mid-span cable entry.
16 ports cable entrance for drop cable.
24 adaptors for drop cable patching
Configuration
Material | Size | Max Capacity | Nos of Adaptor | Weight | Color | |
Strengthen Polymer Plastic | A*B*C(mm) 385*245*130 | Splice 96 Fibers (4trays,24 fiber/tray) | PLC Splitter 2pcs of 1x8 | 24pcs of SC | 4.5kg | Black |
Applications
Wall mounting and pole mounting installation
FTTH pre-installation and filed installation
4-7mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable
Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, cable tube, wreach, cover holder, rubber seal for cable entrance.
Optional Accessories
Pole ring
