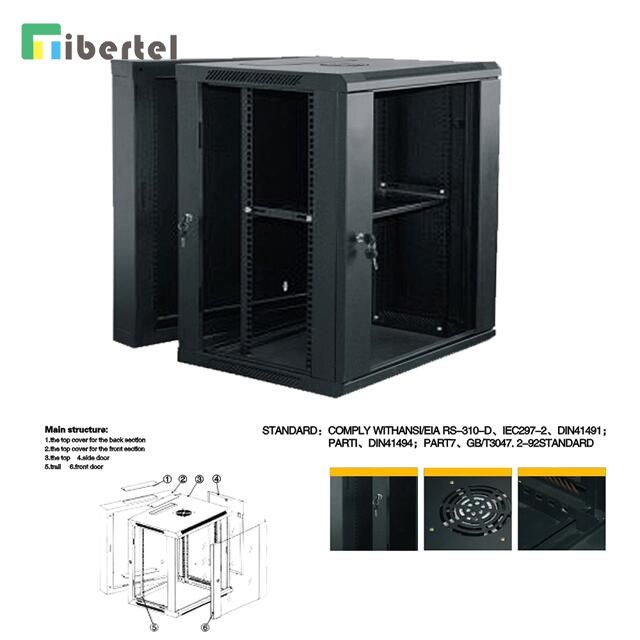

Wall Mounted Network Cabinet

Delivery Date:15-working daysBrand Name:T&J
Model:CBT1007Capacity:6U-27U
Material:SPCC Quality Cold Rolled SteelThickness:1.2mm~2.0mm
Color:RAL9004, RAL7044Surface Finish:Degrease, acid picking, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting
Standard:Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491, GB/T3047.0-92Max loading:60kgs
Origin:China

Specification:

  • Double section wall mount rack

  • Frame structure, max loading 60kgs

  • The frame can be moved according to requirement

  • Wall and stand installation type, optional caster and support feet for stand installing

  • Quick open side door with lock easy to install and maintain

  • Top and bottom wire path

  • Optional 120mm axial motor 1 piece or 2pieces



Material:

SPCC Quality Cold Rolled Steel



Thickness:

Square Hole Strips 2.0mm, others 1.2mm



Color:

RAL9004, RAL7044



Surface Finish:

Degrease, acid picking, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting



Standard: Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491, GB/T3047.0-92



Ordering Capacity:  6U - 27U



Ordering information:

ORDER NO.

Capacity

Width

Depth

Height

Package Volume

CBT1007-6506

6

600

550

368

0.1462

CBT1007-6509

9

600

550

501

0.1937

CBT1007-6512

12

600

550

635

0.2448

CBT1007-6515

15

600

550

769

0.2923

CBT1007-6518

18

600

550

901

0.3398

CBT1007-6522

22

600

550

1082

0.4056

CBT1007-6527

27

600

550

1304

0.4861

CBT1007-6606

6

600

600

368

0.1588

CBT1007-6609

9

600

600

501

0.2104

CBT1007-6612

12

600

600

635

0.2661

CBT1007-6615

15

600

600

769

0.3175

CBT1007-6618

18

600

600

901

0.3691

CBT1007-6622

22

600

600

1082

0.4406

CBT1007-6627

27

600

600

1304

0.5279
