Wall Mounted Network Cabinet

Delivery Date: 15-working days Brand Name: T&J
Model: CBT1008 Capacity: 4U-27U
Material: SPCC Quality Cold Rolled Steel Thickness: 1.2mm~2.0mm
Color: Black or on request Surface Finish: Degrease, acid picking, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting
Standard: Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491, GB/T3047.0-92 Maximum loading: 60kg
Origin: China

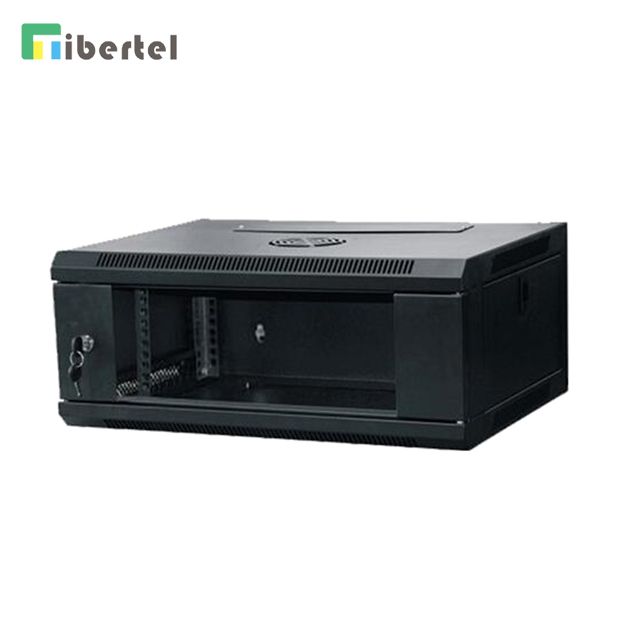

CBT1008 Wall Mounted Network Cabinet


Specification:

  • One section wall mount rack

  • Frame structure, max loading 60kgs

  • The frame can be moved according to requirement

  • Wall and stand installation type, optional caster and support feet for stand installing

  • Quick open side door with lock easy to install and maintain

  • Top and bottom wire path

  • Optional 120mm axial motor 1 piece or 2pieces



Material:

SPCC Quality Cold Rolled Steel



Thickness:

Square Hole Strips 2.0mm, others 1.2mm



Color:

RAL9004, RAL7044



Surface Finish:

Degrease, acid picking, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting



Standard: Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491, GB/T3047.0-92



Ordering Capacity:  4U - 27U


Ordering information:

ORDER NO. Capacity Width Depth Height Package Volume
CBT1008-6404 4 600 450 279 0.0820
CBT1008-6406 6 600 450 368 0.1211
CBT1008-6409 9 600 450 501 0.1603
CBT1008-6412 12 600 450 635 0.1998
CBT1008-6415 15 600 450 769 0.2421
CBT1008-6418 18 600 450 901 0.2812
CBT1008-6422 22 600 450 1082 0.3272
CBT1008-6427 27 600 450 1304 0.4052
CBT1008-6604 4 600 600 279 0.1080
CBT1008-6606 6 600 600 368 0.1588
CBT1008-6609 9 600 600 501 0.2104
CBT1008-6612 12 600 600 635 0.2661
CBT1008-6618 18 600 600 901 0.3691
CBT1008-6622 22 600 600 1082 0.4406
CBT1008-6627 27 600 600 1304 0.5279


Wall Mounted Network Cabinet:



CBT1008 Wall Mounted Network Cabinet
