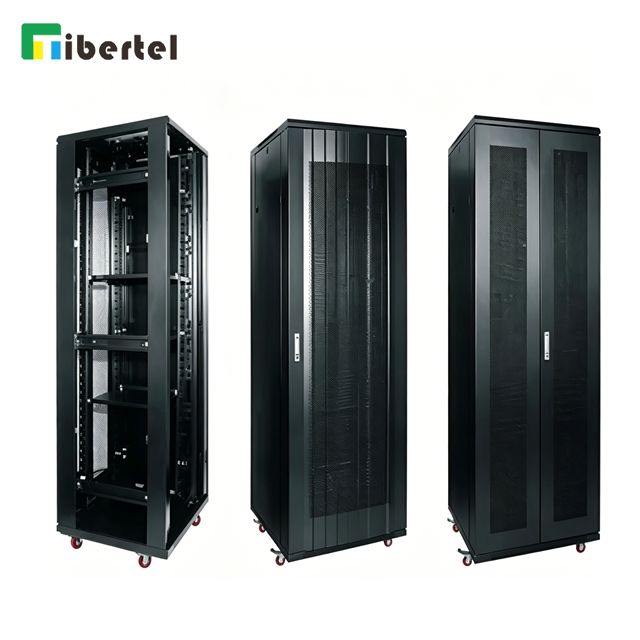

Specification:
Elegance look, profound technical, precise dimension
Range of medium Duty Cabinets of Durable Modular Construction
800kg maximum carrying capacity
The front door and back door is mesh door. The front door has camber and semichicle two type. Available with density vented front real locking Double section doors, enable ventilation and reliable operation.
Wire path on the top and bottom can be closed
Install caster and support at the same time
High grade knot and lock
The frame can be moved according to requirement; "U" was marked in the frame
Detachable composite structure. More convenient for being shipped.
Material:
SPCC Quality Cold Rolled Steel
Thickness:
Square hole strips 1.2mm, other 1.0mm
Surface Finish:
Degrease, acid picking, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting
Standard: Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491, GB/T3047.0-92
Ordering Capacity: 18U - 47U
Ordering information:
ORDER NO. | Capacity | Width | Depth | Height | Package Volume |
CBT1002-6618 | 18 | 600 | 600 | 988 | 0.3844 |
CBT1002-6818 | 18 | 600 | 800 | 988 | 0.5084 |
CBT1002-6918 | 18 | 600 | 900 | 988 | 0.5704 |
CBT1002-6018 | 18 | 600 | 1000 | 988 | 0.6324 |
CBT1002-6622 | 22 | 600 | 600 | 1166 | 0.4459 |
CBT1002-6822 | 22 | 600 | 800 | 1166 | 0.5897 |
CBT1002-6922 | 22 | 600 | 900 | 1166 | 0.6616 |
CBT1002-6022 | 22 | 600 | 1000 | 1166 | 0.7336 |
CBT1002-6627 | 27 | 600 | 600 | 1388 | 0.5189 |
CBT1002-6827 | 27 | 600 | 800 | 1388 | 0.6863 |
CBT1002-6927 | 27 | 600 | 900 | 1388 | 0.7701 |
CBT1002-6027 | 27 | 600 | 1000 | 1388 | 0.8537 |
CBT1002-6632 | 32 | 600 | 600 | 1610 | 0.6266 |
CBT1002-6832 | 32 | 600 | 800 | 1610 | 0.8287 |
CBT1002-6932 | 32 | 600 | 900 | 1610 | 0.9298 |
CBT1002-6A32 | 32 | 600 | 960 | 1610 | 1.0005 |
CBT1002-6032 | 32 | 600 | 1000 | 1610 | 1.0308 |
CBT1002-6637 | 37 | 600 | 600 | 1833 | 0.7123 |
CBT1002-6837 | 37 | 600 | 800 | 1833 | 0.9421 |
CBT1002-6937 | 37 | 600 | 900 | 1833 | 1.0571 |
CBT1002-6A37 | 37 | 600 | 960 | 1833 | 1.1374 |
CBT1002-6037 | 37 | 600 | 1000 | 1833 | 1.1718 |
CBT1002-8637 | 37 | 800 | 600 | 1833 | 0.9421 |
CBT1002-8837 | 37 | 800 | 800 | 1833 | 1.2461 |
CBT1002-8937 | 37 | 800 | 900 | 1833 | 1.3981 |
CBT1002-8037 | 37 | 800 | 1000 | 1833 | 1.5501 |
CBT1002-6642 | 42 | 600 | 600 | 2055 | 0.7881 |
CBT1002-6842 | 42 | 600 | 800 | 2055 | 1.0422 |
CBT1002-6942 | 42 | 600 | 900 | 2055 | 1.1693 |
CBT1002-6A42 | 42 | 600 | 960 | 2055 | 1.2456 |
CBT1002-6042 | 42 | 600 | 1000 | 2055 | 1.2964 |
CBT1002-8642 | 42 | 800 | 600 | 2055 | 1.0422 |
CBT1002-8842 | 42 | 800 | 800 | 2055 | 1.3984 |
CBT1002-8942 | 42 | 800 | 900 | 2055 | 1.5692 |
CBT1002-8042 | 42 | 800 | 1000 | 2055 | 1.7398 |
CBT1002-6647 | 47 | 600 | 600 | 2277 | 0.8831 |
CBT1002-6847 | 47 | 600 | 800 | 2277 | 1.1678 |
CBT1002-6947 | 47 | 600 | 900 | 2277 | 1.3102 |
CBT1002-6A47 | 47 | 600 | 960 | 2277 | 1.4099 |
CBT1002-6047 | 47 | 600 | 1000 | 2277 | 1.4526 |
CBT1002-8647 | 47 | 800 | 600 | 2277 | 1.1678 |
CBT1002-8847 | 47 | 800 | 800 | 2277 | 1.5465 |
CBT1002-8947 | 47 | 800 | 900 | 2277 | 1.7351 |
CBT1002-8047 | 47 | 800 | 1000 | 2277 | 1.9237 |
