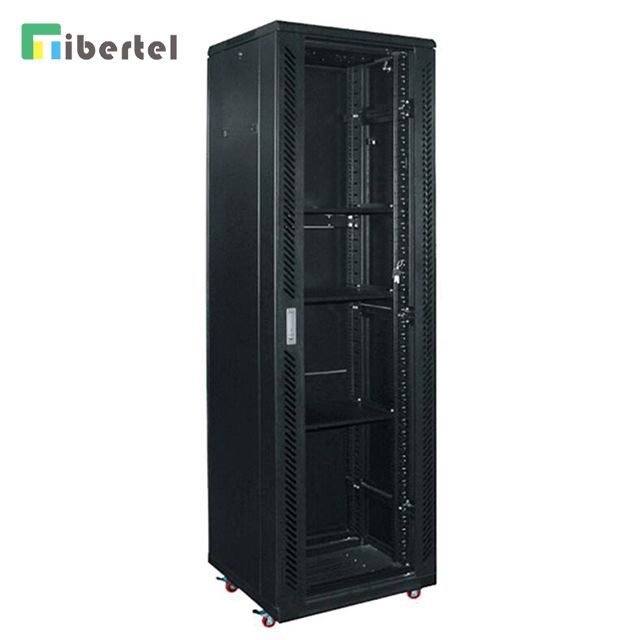

Floor Standing Network Server Cabinet CBT1001

Brand Name: T&J Name: Network cabinet
Capacity: 18U~47U Material: SPCC Quality Cold Rolled Steel
Thickness: 1.2mm~2.0mm Color: Black or on request
Maximum loading: 800kgs Surface Finish: Degrease, acid picking, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting
Standard: Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491, GB/T3047.0-92 Origin: China

Floor Standing Network Server Cabinet



Specification:

  • Elegance look, profound technical, precise dimension, modern design

  • Maximum loading 800kgs

  • Wire path on the top and bottom can be closed

  • Install caster and support feet at the same time

  • Optional bottom seat for stable, bottom wiring, bottom cold ventilation

  • Side door and rear/front door can be taken down easily

  • Can be customized to individual requirements

  • The frame can be moved according to requirement, "U" was marked in the frame

  • Detachable composite structure, more convenient for being shipped


Material:

SPCC Quality Cold Rolled Steel


Thickness:

Square hole strips 2.0mm, other 1.2mm


Color:

RAL9004, RAL7044


Surface Finish:

Degrease, a cid picking, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting


Standard: Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491, GB/T3047.0-92


Ordering Capacity: 18U - 47U


Ordering information:

ORDER NO. New PN Capacity Width Depth Height Package Volume
CBT1001-6618 TJ02FA18U-66 18 600 600 988 0.3844
CBT1001-6818 TJ02FA18U-68 18 600 800 988 0.5084
CBT1001-6918 TJ02FA18U-69 18 600 900 988 0.5704
CBT1001-6018 TJ02FA18U-61 18 600 1000 988 0.6324
CBT1001-6622 TJ02FA22U-66 22 600 600 1166 0.4459
CBT1001-6822 TJ02FA22U-68 22 600 800 1166 0.5897
CBT1001-6922 TJ02FA22U-69 22 600 900 1166 0.6616
CBT1001-6022 TJ02FA22U-61 22 600 1000 1166 0.7336
CBT1001-6627 TJ02FA27U-66 27 600 600 1388 0.5189
CBT1001-6827 TJ02FA27U-68 27 600 800 1388 0.6863
CBT1001-6927 TJ02FA27U-69 27 600 900 1388 0.7701
CBT1001-6027 TJ02FA27U-61 27 600 1000 1388 0.8537
CBT1001-6632 TJ02FA32U-66 32 600 600 1610 0.6266
CBT1001-6832 TJ02FA32U-68 32 600 800 1610 0.8287
CBT1001-6932 TJ02FA32U-69 32 600 900 1610 0.9298
CBT1001-6A32 TJ02FA32U-69A 32 600 960 1610 1.0005
CBT1001-6032 TJ02FA32U-61 32 600 1000 1610 1.0308
CBT1001-6637 TJ02FA37U-66 37 600 600 1833 0.7123
CBT1001-6837 TJ02FA37U-68 37 600 800 1833 0.9421
CBT1001-6937 TJ02FA37U-69 37 600 900 1833 1.0571
CBT1001-6A37 TJ02FA37U-69A 37 600 960 1833 1.1374
CBT1001-6037 TJ02FA37U-61 37 600 1000 1833 1.1718
CBT1001-8637 TJ02FA37U-86 37 800 600 1833 0.9421
CBT1001-8837 TJ02FA37U-88 37 800 800 1833 1.2461
CBT1001-8937 TJ02FA37U-89 37 800 900 1833 1.3981
CBT1001-8037 TJ02FA37U-81 37 800 1000 1833 1.5501
CBT1001-6642 TJ02FA42U-66 42 600 600 2055 0.7881
CBT1001-6842 TJ02FA42U-68 42 600 800 2055 1.0422
CBT1001-6942 TJ02FA42U-69 42 600 900 2055 1.1693
CBT1001-6A42 TJ02FA42U-69A 42 600 960 2055 1.2456
CBT1001-6042 TJ02FA42U-61 42 600 1000 2055 1.2964
CBT1001-8642 TJ02FA42U-86 42 800 600 2055 1.0422
CBT1001-8842 TJ02FA42U-88 42 800 800 2055 1.3984
CBT1001-8942 TJ02FA42U-89 42 800 900 2055 1.5692
CBT1001-8042 TJ02FA42U-81 42 800 1000 2055 1.7398
CBT1001-6647 TJ02FA47U-66 47 600 600 2277 0.8831
CBT1001-6847 TJ02FA47U-68 47 600 800 2277 1.1678
CBT1001-6947 TJ02FA47U-69 47 600 900 2277 1.3102
CBT1001-6A47 TJ02FA47U-69A 47 600 960 2277 1.4099
CBT1001-6047 TJ02FA47U-61 47 600 1000 2277 1.4526
CBT1001-8647 TJ02FA47U-86 47 800 600 2277 1.1678
CBT1001-8847 TJ02FA47U-88 47 800 800 2277 1.5465
CBT1001-8947 TJ02FA47U-89 47 800 900 2277 1.7351
CBT1001-8047 TJ02FA47U-81 47 800 1000 2277 1.9237


Floor Standing Network Server Cabinet CBT1001
