Floor Standing Network Server Cabinet
Home » Products » Cabling Solutions » Network cabinet » Floor Standing Network Server Cabinet
Share to:

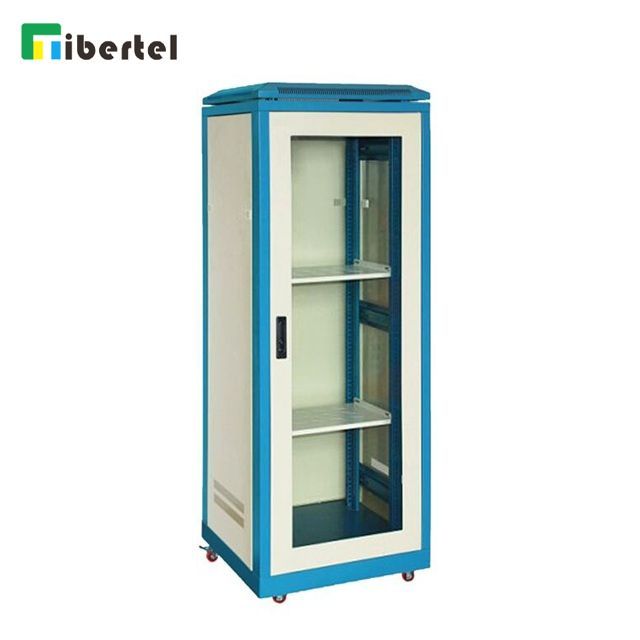

Floor Standing Network Server Cabinet

Delivery Date: 15-working days Brand Name: T&J
Model: CBT1005 Capacity: 16U-40U
Material: SPCC Quality Cold Rolled Steel Thickness: 1.0mm~1.2mm
Color: Lvory white or on request Surface Finish: Degrease, acid picking, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting
Standard: Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491, GB/T3047.0-92 Origin: China

CBT1005 Floor Standing Network Server Cabinet


Specification:

  • Front door made tempered glass

  • Quickly open side door and back door, can be customized to individual requirement

  • Can be install and uninstall open rack type and easily to maintain

  •  Optional bottom seat install caster and support feet, wire path on the bottom

  • Detachable composite structure



Material:

SPCC Quality Cold Rolled Steel



Thickness:

Square hole strips 1.2mm, other 1.0mm



Surface Finish:

Degrease, acid picking, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting



Standard: Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491, GB/T3047.0-92



Ordering Capacity: 16U - 40U


Ordering information:

ORDER NO. Capacity Width Depth Height Package Volume
CBT1005-6616 16 600 600 1000 0.4305
CBT1005-6620 20 600 600 1200 0.5694
CBT1005-6625 25 600 600 1400 0.7083
CBT1005-6630 30 600 600 1600 0.6388
CBT1005-6635 35 600 600 1800 0.5305
CBT1005-6640 40 600 600 2000 0.7016



Floor Standing Network Server Cabinet:


CBT1005 Floor Standing Network Server Cabinet
