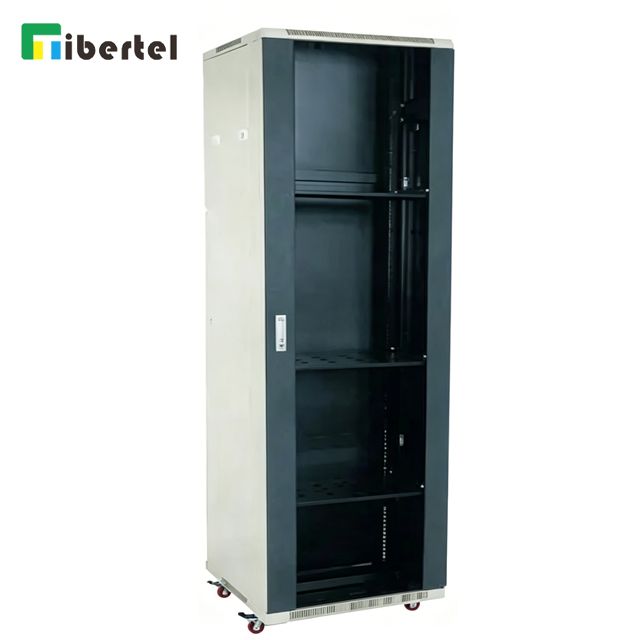

Floor Standing Network Server Cabinet

Availability:
Delivery Date:15-working daysBrand Name:T&J
Name:Network cabinetModel:CBT1004
Capacity:18U-47UMaterial:SPCC Quality Cold Rolled Steel
Thickness:1.2mm~2.0mmColor:RAL9004, RAL7044
Surface Finish:Degrease, acid picking, rust prevention and parkerizing, pure water cleaning, static electricity plastic paintingStandard:Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491, GB/T3047.0-92
Maximum loading:800kgOrigin:China
  • Strong structure, profound technical, economical and practical

  • Front door made by smoky grey color tempered glass

  • Quickly open side door easy to install and maintain

  • Wire path on the top and bottom can be closed

  • Install caster and support feet at the same time

  • Maximum loading 800kg

  • Detachable composite structure, more convenient for being shipped



Material:

SPCC Quality Cold Rolled Steel



Thickness:

Square hole strips 2.0mm, other 1.2mm



Surface Finish:

Degrease, acid picking, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting



Standard: Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491, GB/T3047.0-92



Ordering Capacity: 18U - 47U



Ordering information:

ORDER NO.

Capacity

Width

Depth

Height

Package Volume

CBT1004-6618

18

600

600

988

0.3844

CBT1004-6818

18

600

800

988

0.5084

CBT1004-6918

18

600

900

988

0.5704

CBT1004-6018

18

600

1000

988

0.6324

CBT1004-6622

22

600

600

1166

0.4459

CBT1004-6822

22

600

800

1166

0.5897

CBT1004-6922

22

600

900

1166

0.6616

CBT1004-6022

22

600

1000

1166

0.7336

CBT1004-6627

27

600

600

1388

0.5189

CBT1004-6827

27

600

800

1388

0.6863

CBT1004-6927

27

600

900

1388

0.7701

CBT1004-6027

27

600

1000

1388

0.8537

CBT1004-6632

32

600

600

1610

0.6266

CBT1004-6832

32

600

800

1610

0.8287

CBT1004-6932

32

600

900

1610

0.9298

CBT1004-6A32

32

600

960

1610

1.0005

CBT1004-6032

32

600

1000

1610

1.0308

CBT1004-6637

37

600

600

1833

0.7123

CBT1004-6837

37

600

800

1833

0.9421

CBT1004-6937

37

600

900

1833

1.0571

CBT1004-6A37

37

600

960

1833

1.1374

CBT1004-6037

37

600

1000

1833

1.1718

CBT1004-8637

37

800

600

1833

0.9421

CBT1004-8837

37

800

800

1833

1.2461

CBT1004-8937

37

800

900

1833

1.3981

CBT1004-8037

37

800

1000

1833

1.5501

CBT1004-6642

42

600

600

2055

0.7881

CBT1004-6842

42

600

800

2055

1.0422

CBT1004-6942

42

600

900

2055

1.1693

CBT1004-6A42

42

600

960

2055

1.2456

CBT1004-6042

42

600

1000

2055

1.2964

CBT1004-8642

42

800

600

2055

1.0422

CBT1004-8842

42

800

800

2055

1.3984

CBT1004-8942

42

800

900

2055

1.5692

CBT1004-8042

42

800

1000

2055

1.7398

CBT1004-6647

47

600

600

2277

0.8831

CBT1004-6847

47

600

800

2277

1.1678

CBT1004-6947

47

600

900

2277

1.3102

CBT1004-6A47

47

600

960

2277

1.4099

CBT1004-6047

47

600

1000

2277

1.4526

CBT1004-8647

47

800

600

2277

1.1678

CBT1004-8847

47

800

800

2277

1.5465

CBT1004-8947

47

800

900

2277

1.7351

CBT1004-8047

47

800

1000

2277

1.9237
