Wall Mounted Network Cabinet
Home » Products » Cabling Solutions » Network cabinet » Wall Mounted Network Cabinet
Share to:

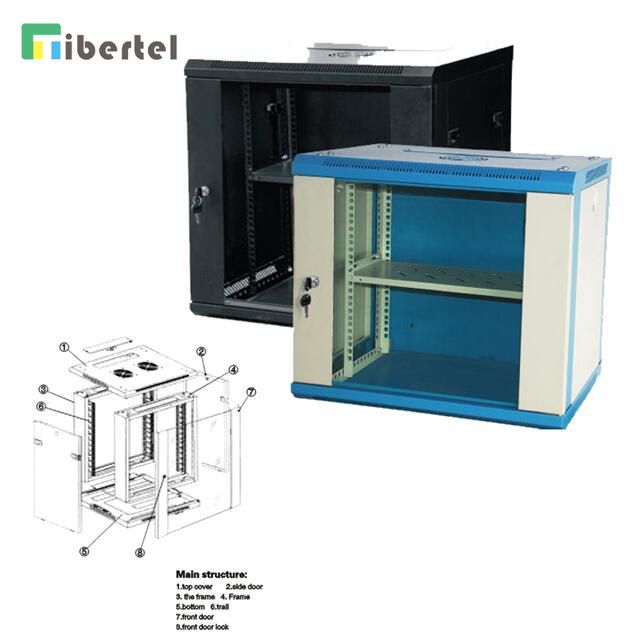

Wall Mounted Network Cabinet

Delivery Date:15-working daysBrand Name:T&J
Model:CBT1009Capacity:6U-27U
Material:SPCC Quality Cold Rolled SteelThickness:1.2mm~2.0mm
Color:Black or on requestSurface Finish:Degrease, acid picking, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting
Standard:Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491, GB/T3047.0-92Max loading:60kg
Origin:China

Specification:

  • One section wall mount rack

  • Frame structure, max loading 60kg

  • The frame can be moved according to requirement

  • Wall and stand installation type, optional caster and support feet for stand installing

  • Quick open side door with lock easy to install and maintain

  • Top and bottom wire path

  • Optional 1200 axial motor 1 piece or 2 pieces

  • Can be shipped as assembled or unassembled

  • Can be do flat packing as customer require


Material:

SPCC Quality Cold Rolled Steel



Thickness:

Square Hole Strips 2.0mm, others 1.2mm



Color:

RAL9004, RAL7044



Surface Finish:

Degrease, acid picking, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting



Standard: Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491, GB/T3047.0-92



Ordering Capacity:  6U - 27U



Ordering information:

ORDER NO.

Capacity

Width

Depth

Height

Package Volume

CBT1009-6406

6

600

450

368

0.1211

CBT1009-6409

9

600

450

501

0.1603

CBT1009-6412

12

600

450

635

0.1998

CBT1009-6415

15

600

450

769

0.2421

CBT1009-6418

18

600

450

901

0.2812

CBT1009-6422

22

600

450

1082

0.3272

CBT1009-6427

27

600

450

1304

0.4052

CBT1009-6606

6

600

600

368

0.1588

CBT1009-6609

9

600

600

501

0.2104

CBT1009-6612

12

600

600

635

0.2661

CBT1009-6618

18

600

600

901

0.3691

CBT1009-6622

22

600

600

1082

0.4406

CBT1009-6627

27

600

600

1304

0.5279
