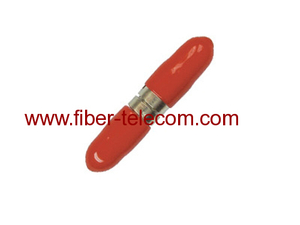

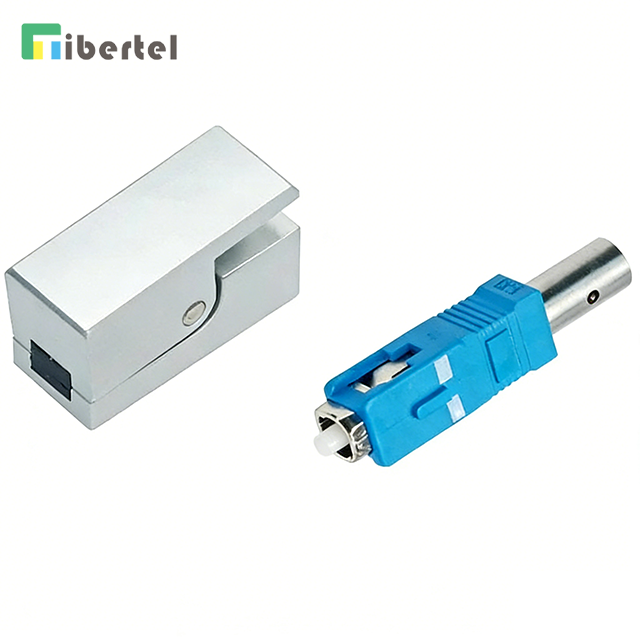

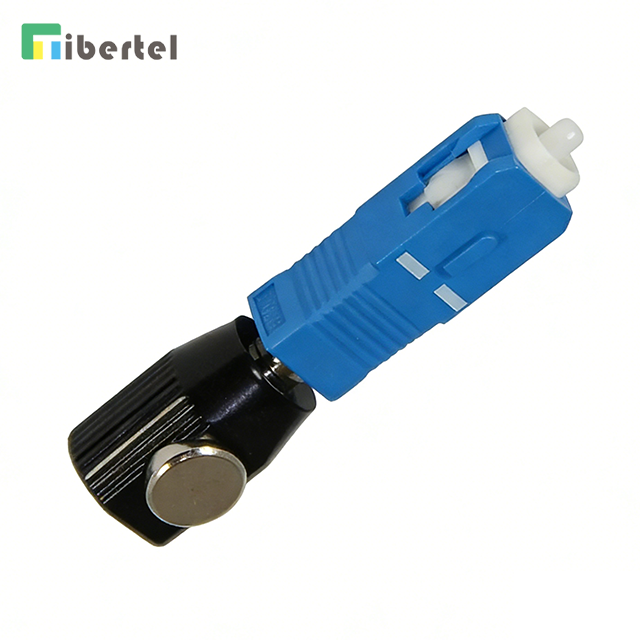

The fiber optic adaptor kits offer an ideal product for application requiring cable-to-cable connections. It can be in standard and hybrid type for most popular connectors including FC, SC, LC, ST, MU, MTRJ, E2000, DIN and MPO.
Applications:
Local Area Networks
Telecommunication Networks
FTTH and FTTx
Testing Equipment
Fiber LAN
Features:
Small loss, excellent reflex inhibition
Size precision, matching
Easy to operate and intuitive, can be used by the naked eye
Can be re-used,
Singlemode and multimode fiber can be used
Compact design
FC, LC, ST, SMA types optional
Accord with Telcordia, ANSI, the TIA / EIA, NTT, JIS and other standards
Specifications |
Type | Parameters |
Connector Type | SC,FC,LC |
Core diameter | ф125.5um~ф126.5um |
Insertion loss | ≤0.5 dB |
Exchangeability | ≤0.10dB |
Interchangeability | <= 0.2dB |
Repeatability: | <= 0.2dB (1,000 sub-standard plug) |
Number of repeated use | ＞1000 |
Operating temperature | -40℃ to +75℃ |
Storage temperature | -40℃ to +80℃ |
