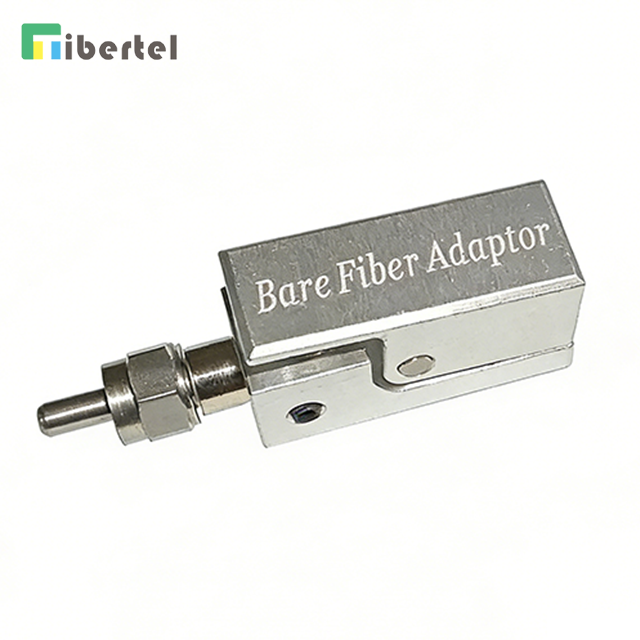

The SMA Bare Fiber Adaptor enables quick and easy temporary SMA connections of multi-mode fibers. This adaptor is very useful for connecting fibers to power meters. Optical time-domain reflect meters (OTDRs) and a variety of other instruments, enabling in-situ functional testing without having to attach a permanent connector. The bare fiber is secured in place with a special precision cut foam pad to ensure kink and diffusion free operation, and repeatable measurements. Fibers with buffer sizes of up to 900 µm can be accommodated. Piano wires for cleaning blocked ferrules are included with all adaptors.
Features:
Simple to use
Suitable for fiber with coating diameters of 205μm & 900μm
Optical fiber with hole diameter between 123-127μm can be used
Multimode or singlemode connectors
Applications:
Specifications:
Parameter | Bare Fiber Adapter |
Mode | S.M(Zirconia) |
Typical Insertion Loss (dB) | 1.0dB Max |
Operating Temperature | -10℃～+75℃ |
Storage Temperature | -40℃～+85℃ |
