The fiber optic adaptor kits offer an ideal product for application requiring cable-to-cable connections. It can be in standard and hybrid type for most popular connectors including FC, SC, LC, ST, MU, MTRJ, E2000, DIN and MPO.
Parameters:
• Insertion Loss ≤ 0.2dB
• Mating Durability (1000 cycles): ≤0.2dB
• Working Temperature: -40℃～+85℃
• SM (blue), MM (beige), APC (green)
• Simplex
• Plastic housing and Metal housing
Applications:
• Fiber telecommunication system
• Optical fiber sensor
• Optical fiber CATV
• Test instrument
• Accurate mechanical dimensions
• LANs
• Data processing networks
• ODFs
Specifications
Type | Parameter |
Connector Type | SC,LC,FC,ST,MU,D4,DIN |
Cable Type | SM | MM |
The adapter color | Blue,, Green ,Metallic | Cream, Metallic |
Central wavelength | 1310nm, 1550nm | 850nm, 1300nm |
Insertion loss | Typical value≤0.15dB,Max≤0.20dB | Typical value≤0.15dB,Max≤0.20dB |
Repeatability | ≤0.10dB |
Exchangeability | ≤0.20dB |
Gallery | Single core, ,twin-core, four-core |
Material of housing | Plastic or metallic |
Material of sleeves | ceramic |
Operating temperature | -20℃ to +70℃ |
Storage temperature | -40℃ to +85℃ |
Packing: 50 pieces / pack

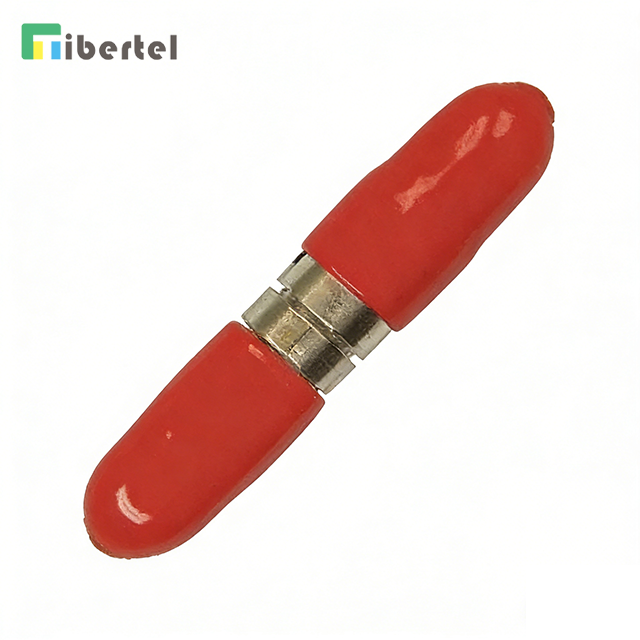

DIN Fiber Optic Adapter
