Delivery Date: | 7-working days | Brand Name: | T&J |
---|---|---|---|
Model: | MTRJ | Connector type: | SM (blue), MM (beige), APC (green) |
Material of housing: | Plastic | Material of sleeves: | ceramic |
Material of dust cap: | Plastic | Color of dust cap: | BLACK |
Insertion Loss: | <= 0.2dB | Mating Durability (1000 cycles): | <= 0.2dB |
Working Temperature: | -30C~~+75C | Origin: | China |
Delivery Date: | 7-working days | Brand Name: | T&J |
---|---|---|---|
Model: | MTRJ | Connector type: | SM (blue), MM (beige), APC (green) |
Material of housing: | Plastic | Material of sleeves: | ceramic |
Material of dust cap: | Plastic | Color of dust cap: | BLACK |
Insertion Loss: | <= 0.2dB | Mating Durability (1000 cycles): | <= 0.2dB |
Working Temperature: | -30C~~+75C | Origin: | China |

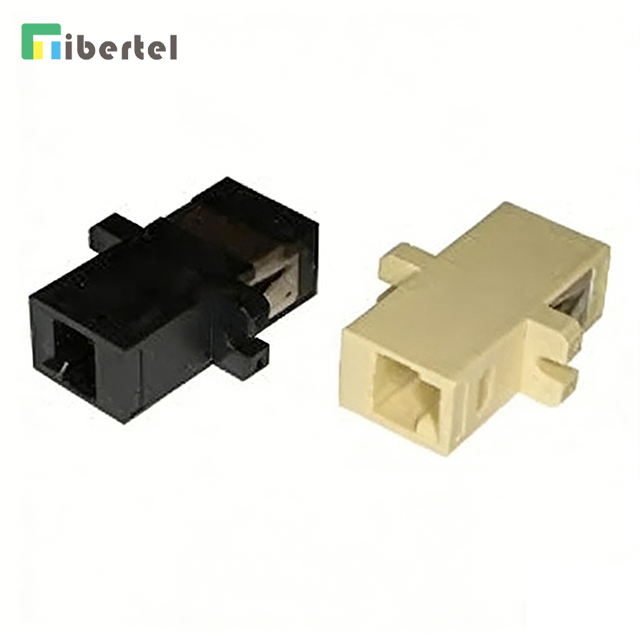

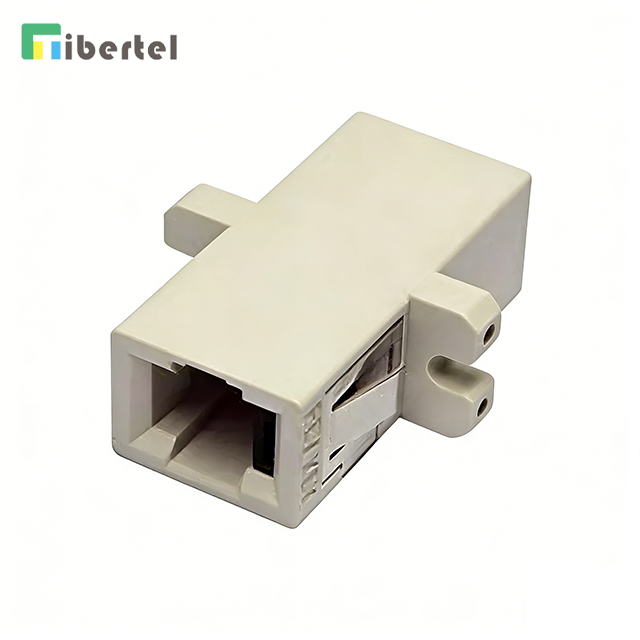

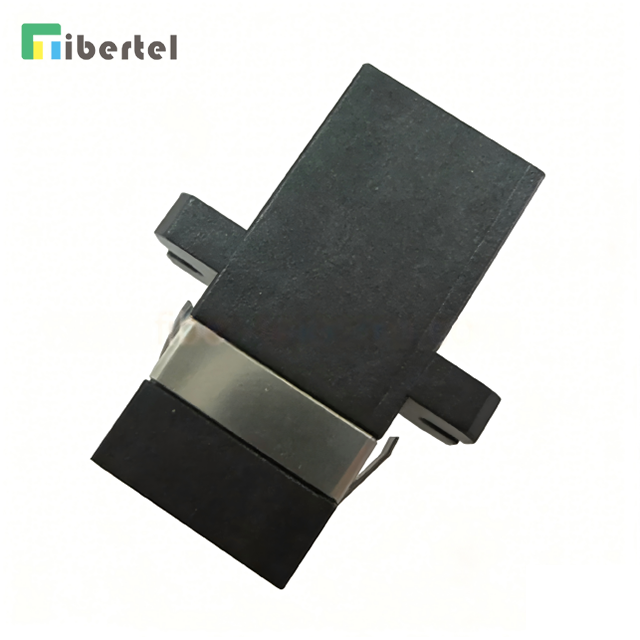

The fiber optic adaptor kits offer an ideal product for application requiring cable-to-cable connections. It can be in standard and hybrid type for most popular connectors including FC, SC, LC, ST, MU, MTRJ, E2000, DIN and MPO.
Parameters:
• Insertion Loss ≤ 0.2dB
• Mating Durability (1000 cycles): ≤0.2dB
• Working Temperature: -40℃~+85℃
• SM (blue), MM (beige), APC (green)
• Simplex
• Plastic housing
Applications:
• Fiber telecommunication system
• Optical fiber sensor
• Optical fiber CATV
• Test instrument
• Accurate mechanical dimensions
• LANs
• Data processing networks
• ODFs
Specifications | |
Insertion Loss | ≤0.2dB (FC,SC,ST,LC,MU) ≤0.5dB (MT-RJ) |
Repeatability | ≤0.1dB (FC,SC,ST,LC,MU)≤0.2dB (MT-RJ) |
Interchangability | ≤0.2 dB |
Mechanical Durability | ≤0.2 dB(1000) |
Operating Temperature | -30°C~~+75°C |
Storage Temperature | -40°C~~+85°C |
The fiber optic adaptor kits offer an ideal product for application requiring cable-to-cable connections. It can be in standard and hybrid type for most popular connectors including FC, SC, LC, ST, MU, MTRJ, E2000, DIN and MPO.
Parameters:
• Insertion Loss ≤ 0.2dB
• Mating Durability (1000 cycles): ≤0.2dB
• Working Temperature: -40℃~+85℃
• SM (blue), MM (beige), APC (green)
• Simplex
• Plastic housing
Applications:
• Fiber telecommunication system
• Optical fiber sensor
• Optical fiber CATV
• Test instrument
• Accurate mechanical dimensions
• LANs
• Data processing networks
• ODFs
Specifications | |
Insertion Loss | ≤0.2dB (FC,SC,ST,LC,MU) ≤0.5dB (MT-RJ) |
Repeatability | ≤0.1dB (FC,SC,ST,LC,MU)≤0.2dB (MT-RJ) |
Interchangability | ≤0.2 dB |
Mechanical Durability | ≤0.2 dB(1000) |
Operating Temperature | -30°C~~+75°C |
Storage Temperature | -40°C~~+85°C |
