ST Bare Fiber Optic Adaptor
Home » Products » FTTx Solutions » Fiber optic adaptor » ST Bare Fiber Optic Adaptor
Share to:

ST Bare Fiber Optic Adaptor

Delivery Date: 7-working days Brand Name: T&J
Model: ST Bare Material of housing: Matallic
Material of sleeves: ceramic coating diameter: 205μm & 900μm
Material of dust cap: plastic Color of dust cap: white
Insertion Loss: <= 0.2dB Mating Durability (1000 cycles): <= 0.2dB
Working Temperature: -40C~+85C Origin: China

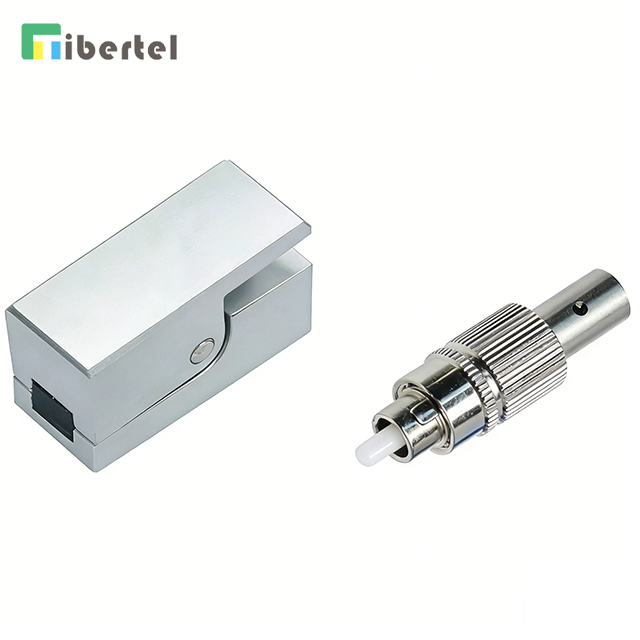

ST BARE Fiber Optic Adaptor,  with matallic housing and ceramic sleeves.


Description:

The ST Bare Fiber Adaptor enables quick and easy temporary ST connections of multi-mode fibers. This adaptor is very useful for connecting fibers to power meters.  Optical time-domain reflect meters (OTDRs) and a variety of other instruments, enabling in-situ functional testing without having to attach a permanent connector. The bare fiber is secured in place with a special precision cut foam pad to ensure kink and diffusion free operation, and repeatable measurements. Fibers with buffer sizes of up to 900 µm can be accommodated. Piano wires for cleaning blocked ferrules are included with all adaptors.


Features:

  • Simple to use

  • Suitable for fiber with coating diameters of 205μm & 900μm

  • Optical fiber with hole diameter between 123-127μm can be used

  •  Multimode or singlemode connectors


Applications:

  • Bare Fiber Connection

  • Optical fiber through connection test

  • Two-way communication during optical-fiber cable installation and maintenance


Specifications:

Parameter

Bare Fiber Adapter

Mode

S.M(Zirconia)

Typical Insertion Loss (dB)

1.0dB Max

Operating Temperature

-10℃~+75℃

Storage Temperature

-40℃~+85℃


ST Bare adaptor




ST Bare Adaptor
