LC Multi Mode Duplex Fiber Optic Adaptor
Home » Products » FTTx Solutions » Fiber optic adaptor » LC Multi Mode Duplex Fiber Optic Adaptor
Share to:

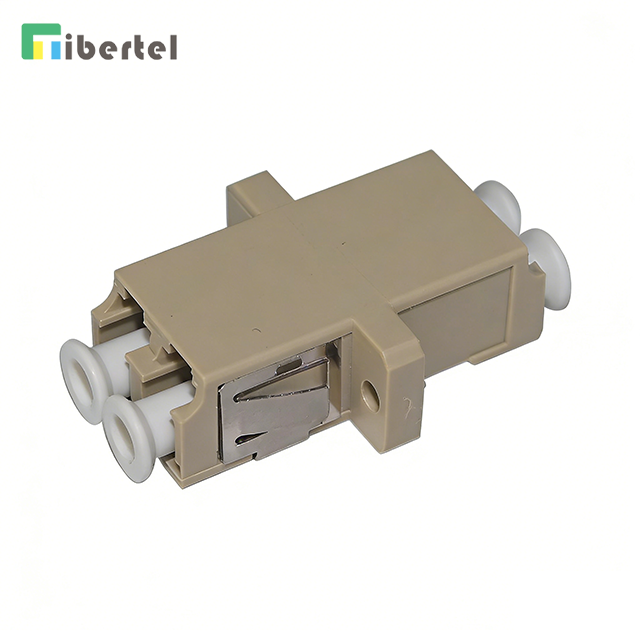

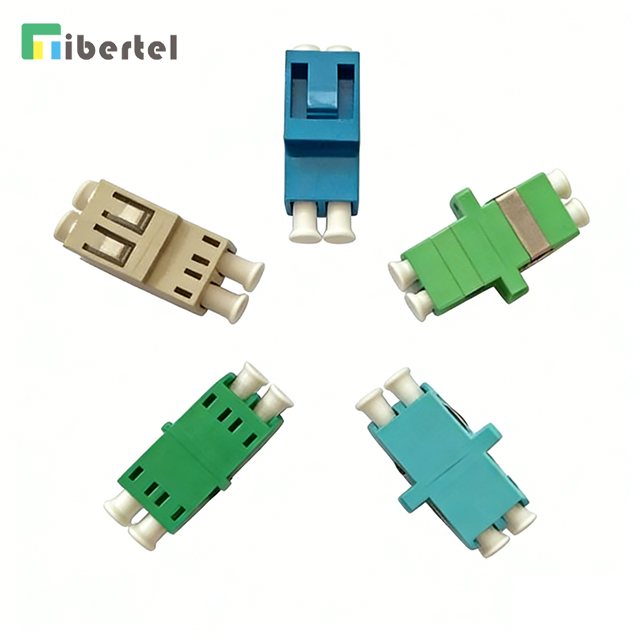

LC Multi Mode Duplex Fiber Optic Adaptor

The fiber optic adaptor kits offer an ideal product for application requiring cable-to-cable connections. It can be in standard and hybrid type for most popular connectors including FC, SC, LC, ST, MU, MTRJ, E2000, DIN and MPO.



Parameters:

• Insertion Loss ≤ 0.2dB

• Mating Durability (1000 cycles): ≤0.2dB

• Working Temperature: -40℃~+85℃

• SM (blue), MM (beige), APC (green)

• Duplex

• Plastic housing


Applications:

• Fiber telecommunication system

• Optical fiber sensor

• Optical fiber CATV

• Test instrument

• Accurate mechanical dimensions

• LANs

• Data processing networks

• ODFs


Specifications



Type

Parameter

Connector   Type

SC,LC,FC,ST,MU,D4,DIN

Cable   Type

SM

MM

The adapter color

Blue,,   Green ,Metallic

Cream,   Metallic

Central   wavelength

1310nm,   1550nm

850nm,   1300nm

Insertion   loss

Typical   value≤0.15dB,Max≤0.20dB

Typical   value≤0.15dB,Max≤0.20dB

Repeatability

≤0.10dB

Exchangeability

≤0.20dB

Gallery

Single core, ,twin-core, four-core

Material of housing

Plastic or metallic

Material of sleeves

ceramic

Operating   temperature

-20℃ to +70℃

Storage   temperature

-40℃ to +85℃
