GJYXFCH-2B6
Availability: | |
---|---|
Delivery Date: | 15-working days | Brand Name: | T&J |
---|---|---|---|
Model: | GJYXFCH-2B6 | Fiber type: | SM G.657A |
Strength member: | FRP | Fiber count: | 2 fibers |
Dimension (2-4 fibers): | 5.3*2.0mm | Dimension (6-8 fibers): | 6.2*2.5mm |
Cable weight: | 21.5~28kgs | Material of outer jacket: | LSZH |
Color of outer jacket: | Black / White or on request. | Standard: | EU RoHS |
Delivery Date: | 15-working days | Brand Name: | T&J |
---|---|---|---|
Model: | GJYXFCH-2B6 | Fiber type: | SM G.657A |
Strength member: | FRP | Fiber count: | 2 fibers |
Dimension (2-4 fibers): | 5.3*2.0mm | Dimension (6-8 fibers): | 6.2*2.5mm |
Cable weight: | 21.5~28kgs | Material of outer jacket: | LSZH |
Color of outer jacket: | Black / White or on request. | Standard: | EU RoHS |

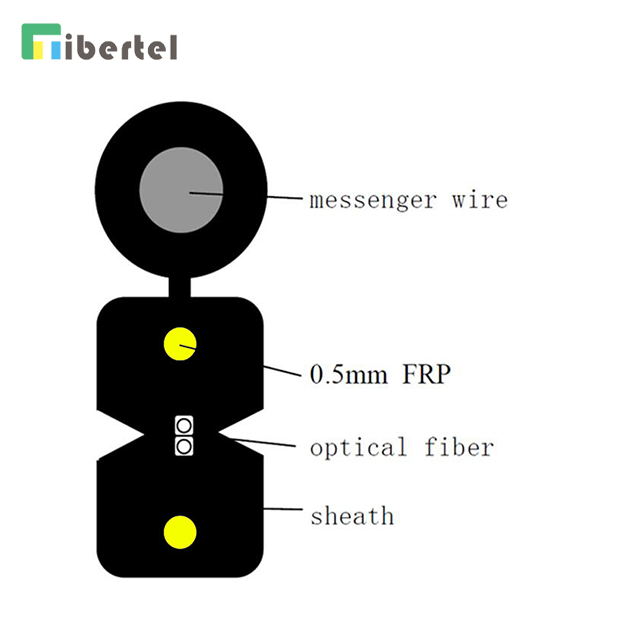

GJYXFCH-2B6 is 2cores of G.657A fiber, utilized 2 parallel FRP strength member protected optical fiber unit, with a LSZH jacket and an addinational messenger wire.
Application:
Used in FTTH outdoor cabling
Used as drop cable
Features:
Compact and light weight, low purchasing and construction costs;
Easy connect without splicing, fast and convenient;
Excellent tensile and crush performance, the span distance for self-support type can be up to 50 meters;
Non-metallic strength member is Kevlar fiber reinforced plastic known as K-FRP;
Soft and flexible, good bending performance;
Flame retardant LSZH jacket meets relevant fire protection requirements in indoor environment;
Optical fiber meets standard ITU-T G657;
High carbon steel messenger wire enables the self-support type has excellent tensile strength.
Technical Parameters (Typical Values):
Model | Fiber Count | O.D. (mm) | Tensile Strength (N) | Crush (N/100mm) | Min.Bending Radius (mm) | Min.Bending Radius(mm) -Rip off the messenger wire | Cable Weight | |
Short Term | Short Term | Dynamic | Static | kg/km | ||||
GJYXFCH-1B6 | 1 | 5.2*2.0 | 600 | 2200 | 120 | 25 | 10 | 21.5 |
GJYXFCH-2B6 | 2 | 5.2*2.0 | 600 | 2200 | 120 | 25 | 10 | 21.6 |
GJYXFCH-4B6 | 4 | 5.2*2.0 | 600 | 2200 | 120 | 25 | 10 | 21.7 |
GJYXFCH-6B6 | 6 | 6.2*2.5 | 600 | 2200 | 120 | 25 | 10 | 28.2 |
GJYXFCH-8B6 | 8 | 6.2*2.5 | 600 | 2200 | 120 | 25 | 10 | 28.3 |
Ordering information:
1) Strength Member:
-FRP
2) Fiber type:
-G.652D
-G.657A1
-G.657A2
4) Fiber core:
-1 to 8 fibers available.
4) Fiber colors:
-Blue, orange, green, brown, gray, white, red, black
5) Material of outer jacket:
-LSZH
6) Color of outer jacket:
-Black, White or on request
7) Cable printing:
-Model + FTTH drop cable + fiber type + length mark, or on request.
8) Reel length:
-1km per drum with testing report. or on requst.
