GYPFHA-2B6
Availability: | |
---|---|
Delivery Date: | 15-working days | Brand Name: | T&J |
---|---|---|---|
Part No.: | GYPFHA-2B6 | Fiber type: | SM G.657A |
Strength member: | FRP | Fiber count: | 2 fibers |
O.D. (mm): | 6.8mm | Material of outer jacket: | PE |
Color of outer jacket: | Black | Standard: | EU ROHS |
Cable weight: | 30kgs /km | Origin: | China |
Delivery Date: | 15-working days | Brand Name: | T&J |
---|---|---|---|
Part No.: | GYPFHA-2B6 | Fiber type: | SM G.657A |
Strength member: | FRP | Fiber count: | 2 fibers |
O.D. (mm): | 6.8mm | Material of outer jacket: | PE |
Color of outer jacket: | Black | Standard: | EU ROHS |
Cable weight: | 30kgs /km | Origin: | China |

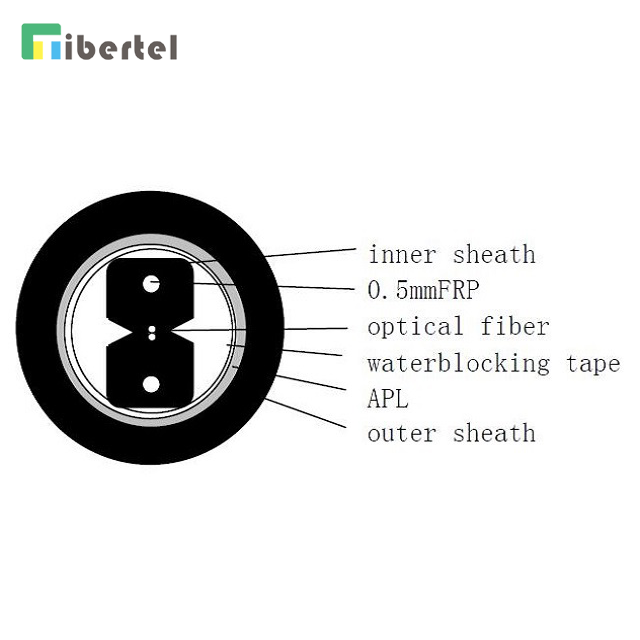

GYPFHA-2B6 FTTH Duct Cable with 2 cores of G.657A fibers, utilized a GJXFH indoor FTTH cable, protected by a Waterblocking tape & APL, then cabled with a PE outer jacket.
Applications:
Used in FTTH duct installation.
Application of FTTH outdoor drop cable
Features:
Completely protected the FTTH indoor cables from the duct installation.
Easy connect without splicing, fast and convenient.
Non-metallic strength member is Kevlar fiber reinforced plastic known as K-FRP.
Flame retardant LSZH inner jacket meets relevant fire protection requirements in indoor environment.
Optical fiber meets standard ITU-T G657
Technical Parameters(Typical Values):
Item | Technology Parameter | ||
Cable type | GYPFHA-1B6 | GYPFHA-2B6 | GYPFHA-4B6 |
Materail of Strength member | 0.5mm FRP | ||
Fiber color | Nature | Nature,Blue | Nature,Blue,Orange,Green |
Fiber type | G.657A (9/125) | ||
Inner sheath color | Black | ||
Inner sheath material | LSZH | ||
Inner cable dimension (mm) | 3.0(±0.1)*2.0(±0.1) | ||
Cable diameter (mm) | 6.8±0.2 | ||
Outer sheath material | PE | ||
Cable weight (Kg/km) | 30 | ||
Min. bending radius (mm) | 10D | ||
Attenuation (dB/km) | ≦ 0.4 at 1310nm,≦ 0.3 at 1550nm | ||
Short tension N | 80 | ||
Short crush N/100mm | 1500 | ||
Operation temperature ℃ | .-10~+60 Relative to 20℃,fiber additional attenuation ≤0.3dB/km -40~+60 Relative to 20℃,fiber additional attenuation ≤0.4dB/km |
Ordering Information:
1) Fiber Count: 1/2/4 fibers of G.657A
2) Cable Printing: Model + FTTH Duct Cable + Fiber type + Length mark. Or on request.
3) Packing: 1km /drum, OEM brand or LOGO available to printed on the drum
