GJYFJCH-1B6
Fibertel
Availability: | |
---|---|
Descriptions

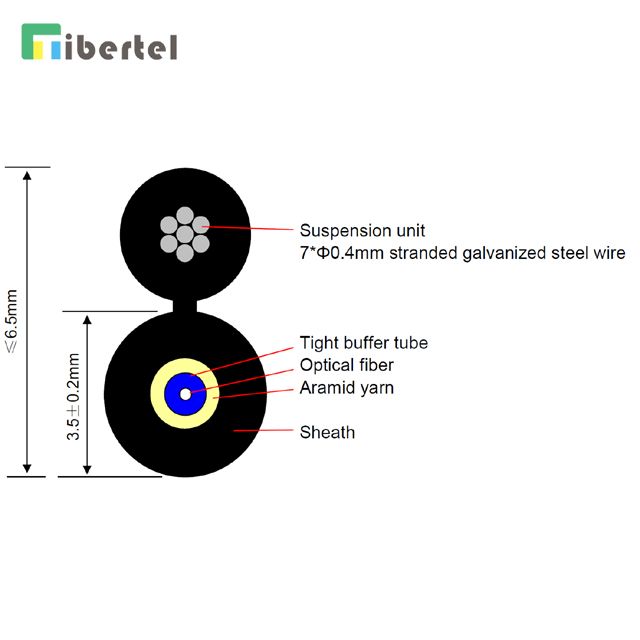

The cable diameter of the 1 core GJYFJCH-1B6 FTTH Outdoor Cable is 3.5x6.5mm, with 7*0.4mm standed galvanized steel wire, it is a highly flexible bending performance cable.
Specifications
Product specification | 3.5×6.5mm |
Fiber type | 9/125 (G.657A2) or on request |
Tight buffer material | LSZH |
Tight buffer color | Blue or on request |
Tight buffer diameter mm | 0.9±0.05 |
Strength member | Aramid yarn |
Suspension unit type | 1×7(single steel wire 0.4mm) or on request |
Message wire thickness mm | ≥0.6 |
LSZH | |
Outer sheath color | Black |
Outer sheath thickness mm | 1.0±0.2 |
Cable weight Kg/km | Approx. 28.0 |
Min. bending radius mm | With suspension unit: 130 Without suspension unit: 15 |
Attenuation dB/km | ≦ 0.38 at 1310nm, ≦ 0.26 at 1550nm |
Short term tensile N | 600 |
Crush resistance N/100mm | 2200 |
Operation temperature ℃ | -10~+70 |
Note: the product produced by Fibertel is in accord with the instruction of EU RoHS
