Description:

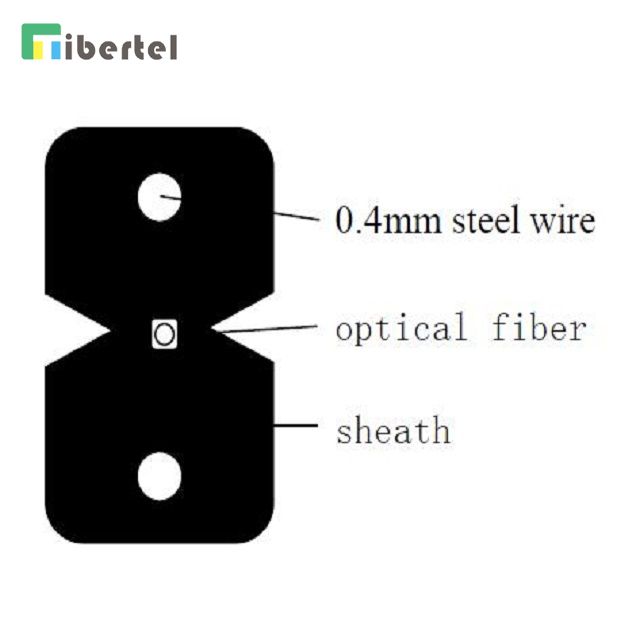

GJXH-1B6 with 1 core of G.657A fiber, utilized 2 parallel Steel Wire strength member protected optical fiber unit, and with a LSZH jacket.
Application:
Used in indoor cabling
Used as drop cable
Features:
Compact and light weight, low purchasing and construction costs;
Easy connect without splicing, fast and convenient;
Excellent tensile and crush performance, the span distance for self-support type can be up to 50 meters;
Competitive cost cable with steel wire strength member;
Soft and flexible, good bending performance;
Flame retardant LSZH jacket meets relevant fire protection requirements in indoor environment;
Optical fiber meets standard ITU-T G657;
High carbon steel messenger wire enables the self-support type has excellent tensile strength.
Technical Parameters (Typical Values):
Model | Fiber Count | O.D. (mm) | Tensile Strength(N) | Crush (N/100mm) | Min.Bending Radius(mm) | Min.Bending Radius(mm) | Cable Weight |
|
|
| Short Term | Short Term | Dynamic | Static | kg/km |
GJXH-1B6 | 1 | 3.0*2.0 | 80 | 1000 | 25 | 10 | 10.7 |
GJXH-2B6 | 2 | 3.0*2.0 | 80 | 1000 | 25 | 10 | 10.9 |
GJXH-4B6 | 4 | 3.0*2.0 | 80 | 1000 | 25 | 10 | 11.2 |
GJXH-6B6 | 6 | 3.5*2.5 | 80 | 1000 | 25 | 10 | 14.8 |
GJXFH-8B6 | 8 | 3.5*2.5 | 80 | 1000 | 25 | 10 | 15.3 |
Ordering information:
1) Strength Member:
-0.4mm Steel Wire
2) Fiber type:
-G.652D
-G.657A1
-G.657A2
4) Fiber core:
-1 to 8 fibers available.
4) Fiber colors:
-Blue, orange, green, brown, gray, white, red, black
5) Material of outer jacket:
-LSZH
6) Color of outer jacket:
-Black, White or on request
7) Cable printing:
-Model + FTTH indoor cable + fiber type + length mark, or on request.
8) Reel length:
-1km per drum with testing report. or on requst.
