GJXFH-1B6 FTTH Indoor Cable 1 Core with 0.5mm FRP Strength Member
Home » Products » FTTx Solutions » FTTH cable » GJXFH-1B6 FTTH Indoor Cable 1 Core with 0.5mm FRP Strength Member
Share to:

GJXFH-1B6 FTTH Indoor Cable 1 Core with 0.5mm FRP Strength Member

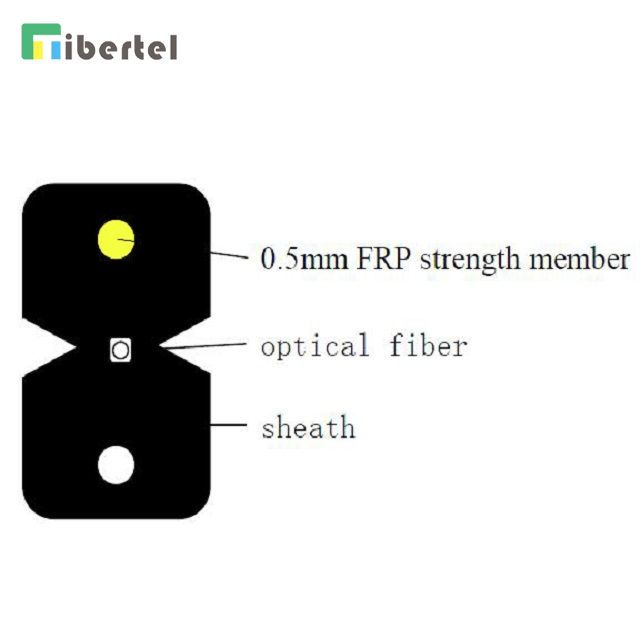

GJXFH-1B6 is 1 core of G.657A fiber cable, utilized 2 parallel non-metallic strength member protected optical fiber unit, and with a LSZH jacket.

  • GJXFH-1B6
Delivery Date:15-working daysBrand Name:T&J
Model:GJXFH-1B6Fiber type:SM G.657A
Strength member:FRPFiber count:1 fiber
Dimension (1-4 fibers):3.1*2.0mmDimension (6-8 fibers):3.5*2.5mm
Cable weight:9.6~13.8kgsMaterial of outer jacket:LSZH
Color of outer jacket:Black / White or on request.Standard:EU RoHS

GJXFH-1B6 is 1 core of G.657A fiber cable, utilized 2 parallel non-metallic strength member protected optical fiber unit, and with a LSZH jacket.


Application:

Used in indoor cabling

Used as drop cable


Features:

Compact and light weight, low purchasing and construction costs;

Easy connect without splicing, fast and convenient;

Excellent tensile and crush performance, the span distance for self-support type can be up to 50 meters;

Non-metallic strength member is Kevlar fiber reinforced plastic known as K-FRP;

Soft and flexible, good bending performance;

Flame retardant LSZH jacket meets relevant fire protection requirements in indoor environment;

Optical fiber meets standard ITU-T G657;

High carbon steel messenger wire enables the self-support type has excellent tensile strength.


Technical Parameters (Typical Values):

Model

Fiber Count

O.D.

(mm)

Tensile

Strength(N)

Crush

(N/100mm)

Min.Bending

Radius(mm)

Min.Bending

Radius(mm)

Cable

Weight




Short Term

Short Term

Dynamic

Static

kg/km

GJXFH-1B6

1

3.0*2.0

80

1000

25

10

9.6

GJXFH-2B6

2

3.0*2.0

80

1000

25

10

9.8

GJXFH-4B6

4

3.0*2.0

80

1000

25

10

10.0

GJXFH-6B6

6

3.5*2.5

80

1000

25

10

13.5

GJXFH-8B6

8

3.5*2.5

80

1000

25

10

13.8


Ordering information:

1) Strength Member:

   -FRP

2) Fiber type:

   -G.652D

   -G.657A1

   -G.657A2

4) Fiber core:

   -1 to 8 fibers available.

4) Fiber colors:

   -Blue, orange, green, brown, gray, white, red, black

5) Material of outer jacket:

   -LSZH

5) Color of outer jacket:

   -Black, White or on request

7) Cable printing:

   -Model + FTTH indoor cable + fiber type + length mark, or on request.

8) Reel length:

   -1km per drum with testing report. or on requst.
