GJYXCH-8B6 FTTH Drop Cable 8 Core Fig.8 with 0.4mm Steel Wire Strength Member

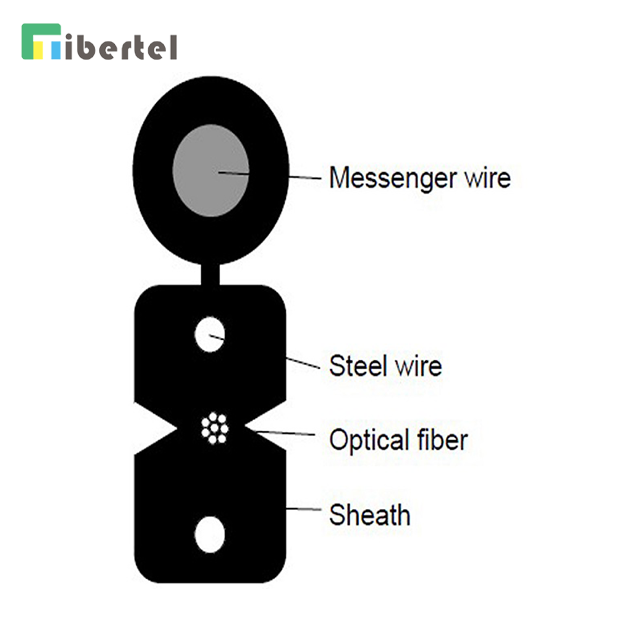

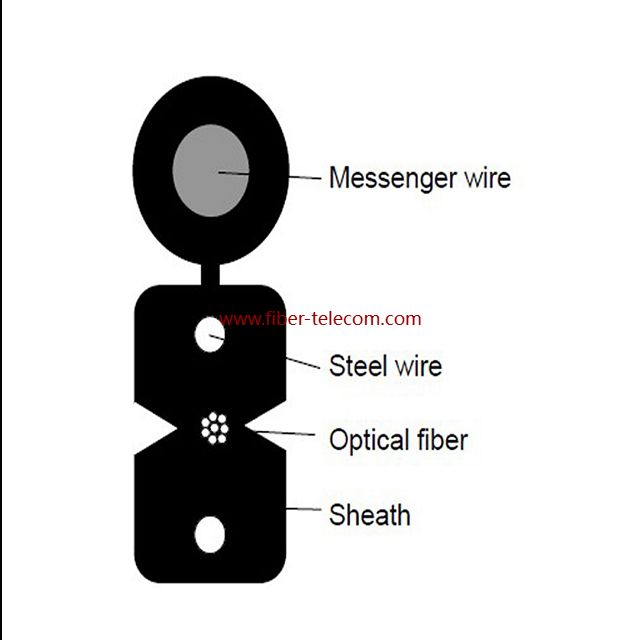

GJYXCH-8B6 is 8cores of G.657A fibers, utilized 2 parallel Steel Wire strength member protected optical fiber unit, with a LSZH jacket and an addinational messenger wire.

  • GJYXCH-8B6
Delivery Date:15-working daysBrand Name:T&J
Model:GJYXCH-8B6Fiber type:SM G.657A
Strength member:0.4mm steel wireFiber count:8 fibers
Dimension (2-4 fibers):5.2*2.0mmDimension (6-8 fibers):6.2*2.5mm
Cable weight:22.8~29.3kgsMaterial of outer jacket:LSZH
Color of outer jacket:Black / White or on request.Standard:EU RoHS

GJYXCH-8B6 is 8cores of G.657A fibers, utilized 2 parallel Steel Wire strength member protected optical fiber unit, with a LSZH jacket and an addinational messenger wire.


Application:


Used in FTTH outdoor cabling

Used as drop cable


Features:

Compact and light weight, low purchasing and construction costs;

Easy connect without splicing, fast and convenient;

Excellent tensile and crush performance, the span distance for self-support type can be up to 50 meters;

With 0.4mm steel wire strength member;

Soft and flexible, good bending performance;

Flame retardant LSZH jacket meets relevant fire protection requirements in indoor environment;

Optical fiber meets standard ITU-T G657;

High carbon steel messenger wire enables the self-support type has excellent tensile strength.


Technical Parameters (Typical Values):

Model

Fiber

Count

O.D.

(mm)

Tensile

Strength

(N)

Crush

(N/100mm)

Min.Bending

Radius(mm)

Min.Bending

Radis-Rip off

the messenger

wire (mm)

Cable

Weight




Short Term

Short Term


Dynamic

Static

kg/km

GJYXCH-1B6

1

5.2*2.0

600

2200

120

25

10

22.5

GJYXCH-2B6

2

5.2*2.0

600

2200

120

25

10

22.6

GJYXCH-4B6

4

5.2*2.0

600

2200

120

25

10

22.7

GJYXCH-6B6

6

6.2*2.5

600

2200

120

25

10

29.3

GJYXCH-8B6

8

6.2*2.5

600

2200

120

25

10

29.4


Ordering information:

1) Strength Member:

   -0.4mm Steel Wire

2) Fiber type:

   -G.652D

   -G.657A1

   -G.657A2

4) Fiber core:

   -1 to 8 fibers available.

4) Fiber colors:

   -Blue, orange, green, brown, gray, white, red, black

5) Material of outer jacket:

   -LSZH

6) Color of outer jacket:

   -Black, White or on request

7) Cable printing:

   -Model + FTTH drop cable + fiber type + length mark, or on request.

8) Reel length:

   -1km per drum with testing report. or on requst.
