TJ02DP710
Fibertel
Availability: | |
---|---|

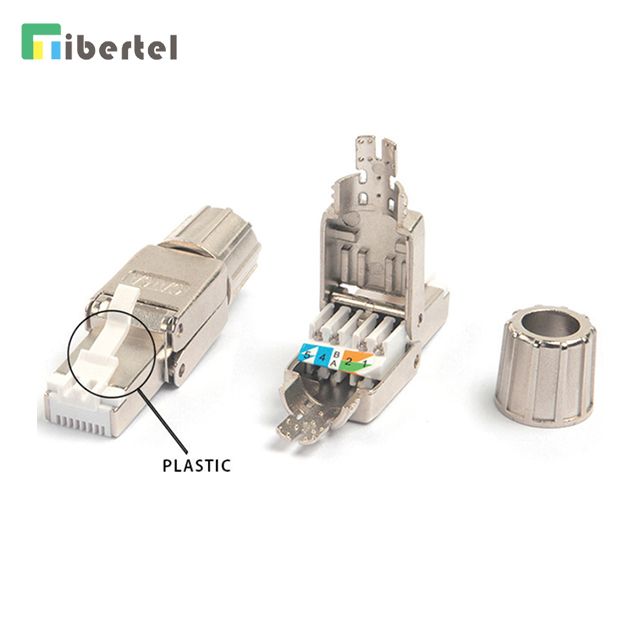

Product Name | CAT6 STP Field Termination Plug |
Part No. | TJ02DP710 |
Plug Contact | Phosphor bronze, finished with 6u to 50µ gold plating on jack contact area |
Mating Cycles | 750 |
Cable Diameter | 6-9mm |
Suitable Wire Sizes | Stranded AWG22-27, Solid AWG22-26 |
Max. Conductor Insulation Diameter | 1.65mm |
Current Rating | 1.5A |
Dielectric Withstanding Voltage | 1000V DC |
Insulation Resistance | 500MΩ min. |
Contact Resistance | 20mΩ max |
Product Name | CAT6 STP Field Termination Plug |
Part No. | TJ02DP710 |
Plug Contact | Phosphor bronze, finished with 6u to 50µ gold plating on jack contact area |
Mating Cycles | 750 |
Cable Diameter | 6-9mm |
Suitable Wire Sizes | Stranded AWG22-27, Solid AWG22-26 |
Max. Conductor Insulation Diameter | 1.65mm |
Current Rating | 1.5A |
Dielectric Withstanding Voltage | 1000V DC |
Insulation Resistance | 500MΩ min. |
Contact Resistance | 20mΩ max |
