CAT5e Keystone Jack Series
Home » Products » Cabling Solutions » Keystone jack » CAT5e Keystone Jack Series
Share to:

CAT5e Keystone Jack Series

Delivery Date: 20-working days Brand Name: T&J
Type: KSJ5009 Category: CAT5e
Current rating: 1.5 Amp Max Insulation Resistance: 500M-ohm
Voltage rating: 150 Volts Contact resistance: 20m-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60HZ 1 min Housing: PC UL94V-0
IDC: PC UL 94V-0,Accept 22-26 AWG Solid Wire PCB: FR4 1.6mm (0.04") thickness,2 layers

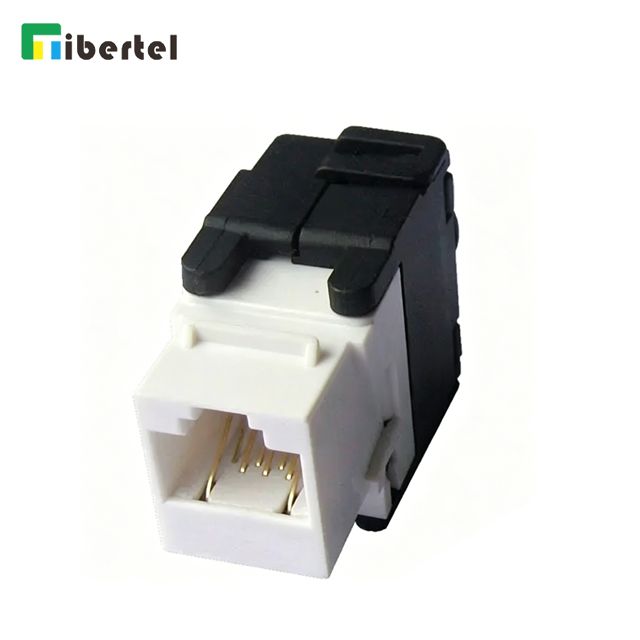

KSJ5009 CAT5e Keystone Jack


CAT5e Keystone Jack

Part No.: KSJ5009

Des.:CAT.5e Unshielded Toolness jack

Jack Angle:90 Degree

Termination: 110-Dual-Krone


Specifications:

All of the Keystone Jacks meet

A.    TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements

B.    TIA/EIA TSB-40

C.    ISO/IEC Generic Cabling Standard 11801

D.    CENELEC Generic Cabling Standard EN50173

Termination available for Krone-110-DUAL Type



Electrical:

According to UL 1863

Current rating: 1.5 Amp Max

Contact resistance: 20m-ohm

Insulation Resistance: 500M-ohm

Dielectric Withstand Voltage: 1000 V AC RMS, 60HZ 1 min



Material:

Housing: PC UL94V-0

IDC: PC UL 94V-0, Accept 22-26 AWG Solid Wire

PCB: FR4 1.6mm (0.04") thickness,2 layers

Contact: PC UI94V-0, 0.45mm(0.018")Diameter Phosphor bronze with 3 U" to 50U" Gold plating on contact area


CAT5e Keystone Jack Series:




KSJ5009 CAT5e Keystone Jack
