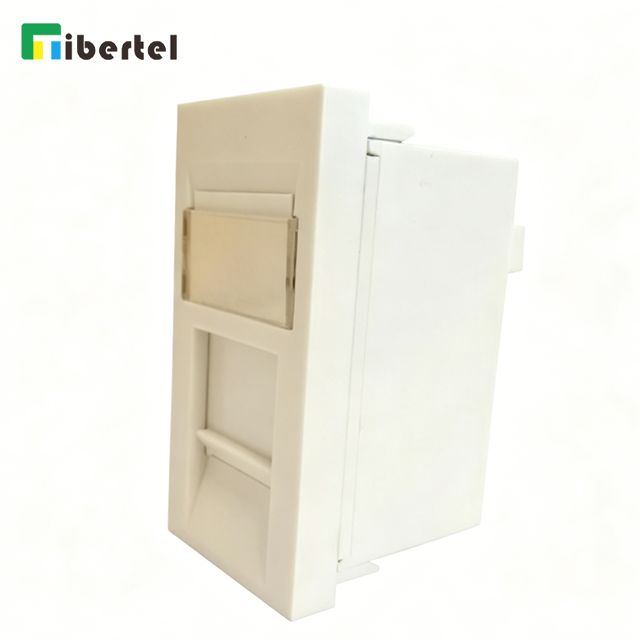

Network Faceplate Modular Plug

  • TJ02EMC5E
Delivery Date:20-working daysBrand Name:T&J
Category:CAT5eCurrent rating:1.5 Amp Max
Insulation Resistance:500M-ohmVoltage rating:150 Volts
Contact resistance:20m-ohmDielectric Withstand Voltage:1000 V AC RMS, 60HZ 1 min
Housing:PC UL94V-0IDC:PC UL 94V-0,Accept 22-26 AWG Solid Wire
PCB:FR4 1.6mm (0.04") thickness,2 layers

Reliable (Lifetime Manufacturer Warranty) Modular Cat 5e Jack. These are reliable Cat 5e Modular Jacks for your Ethernet requirements.


Used for integrating into Faceplate's for Computer / EPOS / CCTV Networking

Fully comply with the standard for enhanced Category 5e

Each shuttered module is supplier with slide label field and space above

Termination can be made using Krone tooling

Cable Tie base is positioned between the IDC blocks for cable relief

Overall dimensions 50mm x 25mm
