CAT.6A Shielded FTP Keystone Jack

Delivery Date: 20-working days Brand Name: T&J
Model No.: KSJ6A01F Type: CAT.6A
Current rating: 1.5Amps Insulation Resistance: 500 Megaohm
DC Resistance: 0.1 ohm MAX Voltage: 150 VAC max
Insertion life: =>750 mating cycles Plug retention force: 89N
IDC accept: 22-26 AWG solid wire Wire Scheme: T568A/B

CAT.6A Shielded FTP Keystone Jack:





Technical Datails:

  • Current Rating: 1.5 Amps

  • Insulation Resistance: 500 Megaohm

  • DC Resistance: 0.1 ohm MAX

  • Voltage: 150 VAC Max

  • Insertion Life: => 750 Mating Cycles

  • Plug Retention Force: 89N

  • Temperature: -60C to +70C

  • IDC Accept: 22-26 AWG Solid Wire

  • Wire Scheme: T568A/B


Material:

  • Housing: High-Impact flame retardant polycarbonate, UL94V-0

  • Shield: Zinc Die Casting

  • Spring Wire: Phosphor Bronze with gold-plated 6U"/15U"/30U"/50U"

  • IDC Contact: Phosphor Bronze with Tin-plated 50U"

  • PCB Design: two PCB design


Ordering Information:

  1.  CAT.6A Shielded FTP Keystone Jack only

  2.  Faceplate loaded with CAT.6a FTP keyston jack

  3.  Patch panel loaded with CAT.6a FTP keyston jack


Installtion Instruction:

1.Run the wire through the rear shielded case


2. Cut the pair separator and rip cord (if present) as close as possible to the jacket

3. Insert each wire into the appropriate channel according to the color code on the module and cut the superfluous wires from the caps

4. Put the cap into the rear part and press the side cases into the module tightly

5. Press the round part into the module tightly from side as shown

6. Finish the CAT.6a FTP shielded keystone jack assembly

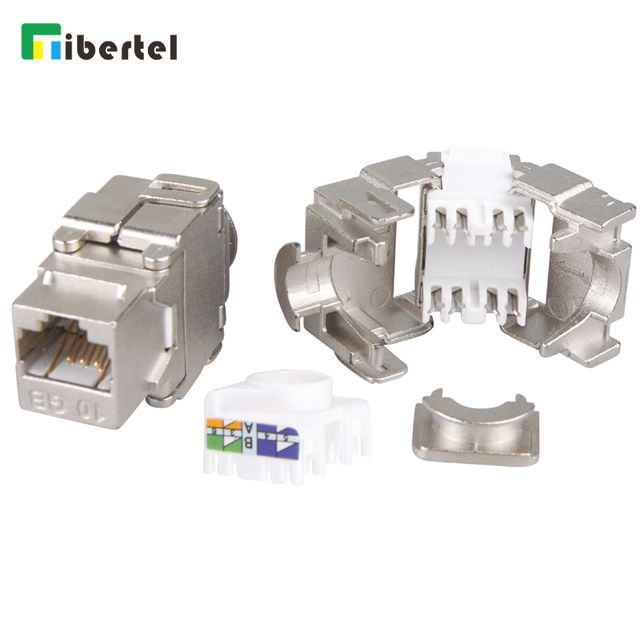

CAT.6a Shielded FTP Keystone Jack
