CAT3 Keystone Jack UTP
Home » Products » Cabling Solutions » Keystone jack » CAT3 Keystone Jack UTP
Share to:

CAT3 Keystone Jack UTP

Delivery Date: 20-working days Brand Name: T&J
Category: CAT3 Current rating: 1.5 Amp Max
Insulation Resistance: 500M-ohm Voltage rating: 150 Volts
Contact resistance: 20m-ohm Dielectric Withstand Voltage: 1000 V AC RMS, 60HZ 1 min
Housing: PC UL94V-0 IDC: PC UL 94V-0,Accept 22-26 AWG Solid Wire
PCB: FR4 1.6mm (0.04") thickness,2 layers

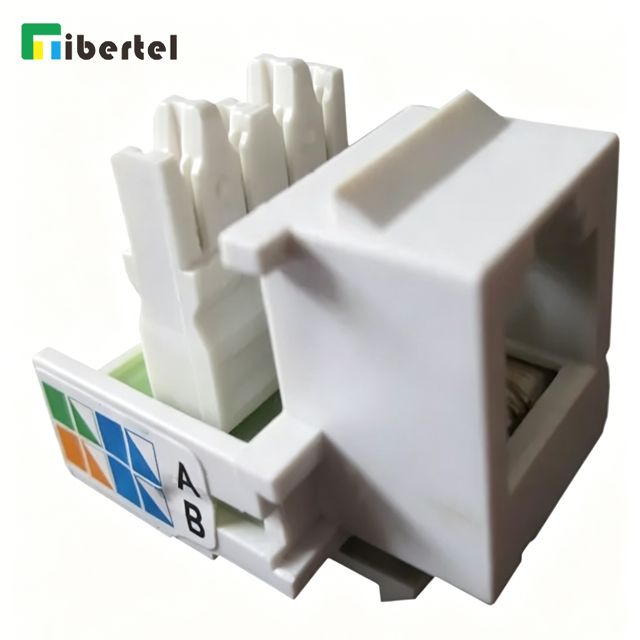

KSJ3008 CAT3 Keystone Jack UTP


CAT3 Keystone Jack

Part No.: KSJ3002

Des.:Keystone Jack CAT3,6P4C UTP


Specifications:

All of the Keystone Jacks meet

A.    TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements

B.    TIA/EIA TSB-40

C.    ISO/IEC Generic Cabling Standard 11801

D.    CENELEC Generic Cabling Standard EN50173

Termination available for Krone-110-DUAL Type



Electrical:

According to UL 1863

Current rating: 1.5 Amp Max

Contact resistance: 20m-ohm

Insulation Resistance: 500M-ohm

Dielectric Withstand Voltage: 1000 V AC RMS, 60HZ 1 min



Material:

Housing: PC UL94V-0

IDC: PC UL 94V-0, Accept 22-26 AWG Solid Wire

PCB: FR4 1.6mm (0.04") thickness,2 layers

Contact: PC UI94V-0, 0.45mm(0.018")Diameter Phosphor bronze with 3 U" to 50U" Gold plating on contact area


CAT3 Keystone Jack UTP:



KSJ3008 CAT3 Keystone Jack UTP
