Delivery Date: | 20-working days | Brand Name: | T&J |
---|---|---|---|

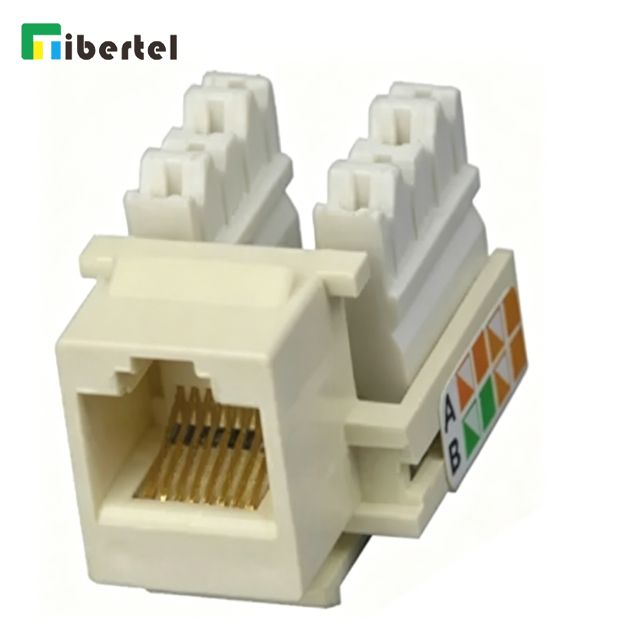

Type: | KSJ5002/TJ02D5001 | Category: | CAT5e |
Current rating: | 1.5 Amp Max | Insulation Resistance: | 500M-ohm |
Voltage rating: | 150 Volts | Contact resistance: | 20m-ohm |
Dielectric Withstand Voltage: | 1000 V AC RMS, 60HZ 1 min | Housing: | PC UL94V-0 |
IDC: | PC UL 94V-0,Accept 22-26 AWG Solid Wire | PCB: | FR4 1.6mm (0.04") thickness,2 layers |
Delivery Date: | 20-working days | Brand Name: | T&J |
---|---|---|---|
Type: | KSJ5002/TJ02D5001 | Category: | CAT5e |
Current rating: | 1.5 Amp Max | Insulation Resistance: | 500M-ohm |
Voltage rating: | 150 Volts | Contact resistance: | 20m-ohm |
Dielectric Withstand Voltage: | 1000 V AC RMS, 60HZ 1 min | Housing: | PC UL94V-0 |
IDC: | PC UL 94V-0,Accept 22-26 AWG Solid Wire | PCB: | FR4 1.6mm (0.04") thickness,2 layers |
Specifications:
All of the Keystone Jacks meet
A. TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements
B. TIA/EIA TSB-40
C. ISO/IEC Generic Cabling Standard 11801
D. CENELEC Generic Cabling Standard EN50173
Termination available for Krone-110-DUAL Type
Electrical:
According to UL 1863
Current rating: 1.5 Amp Max
Contact resistance: 20m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60HZ 1 min
Material:
Housing: PC UL94V-0
IDC: PC UL 94V-0, Accept 22-26 AWG Solid Wire
PCB: FR4 1.6mm (0.04") thickness,2 layers
Contact: PC UI94V-0, 0.45mm(0.018")Diameter Phosphor bronze with 3 U" to 50U" Gold plating on contact area
