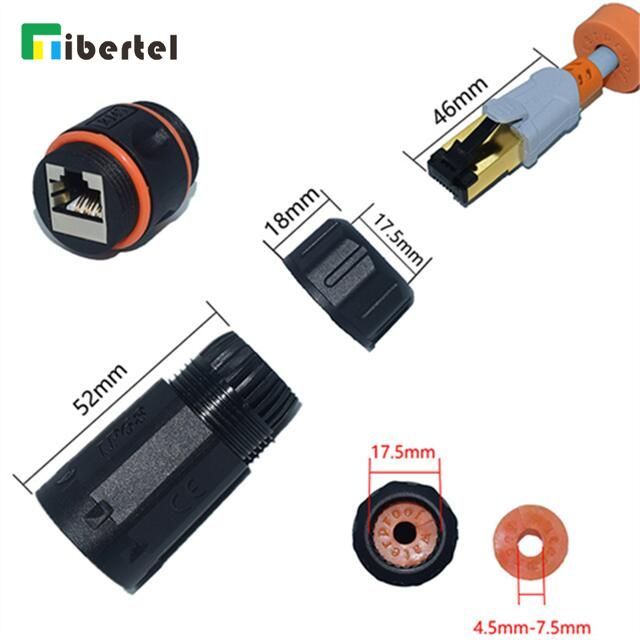

TJ02WP06A
Features
Waterproof RJ45 to RJ45 inline coupler, provide with CAT5e, CAT6 and CAT6A
Suitable for connecting network patch leads and Ethernet cables
Use with unshielded and shielded cables
Useful when installing IP security cameras, Wifi access points, digital signage, Point-to-Point wireless antenna, Industrial Ethernet and POE lighting
IP68 rated
POE+ (IEEE 802.3at) support
Specifications
Part No. | Description | Material | Rated Current | Cable OD Range | Dimension |
TJ02WP050 | CAT5E | Nylon PA66, Copper, Rubber Ring | 250 VAC @2.4 Amps | 7.5~14.5mm | 135x33mm |
TJ02WP060 | CAT6 | Nylon PA66, Copper, Rubber Ring | 250 VAC @2.4 Amps | 7.5~17.5mm | 134x37mm |
TJ02WP06A | CAT6A | Nylon PA66, Copper, Rubber Ring | 250 VAC @2.4 Amps | 7.5~17.5mm | 134x37mm |
