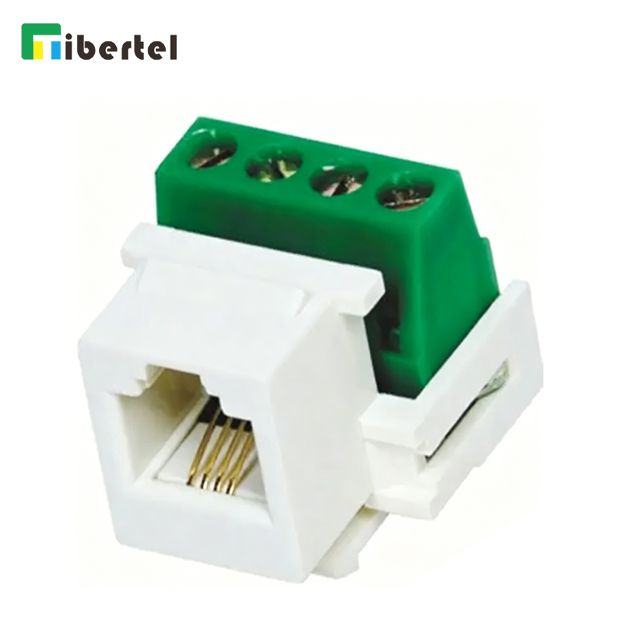

CAT3 Keystone Jack UTP

  • TJ02D3001
Availability:
Delivery Date:20-working daysBrand Name:T&J
Type:KSJ3001/TJ02D3001Category:CAT3
Current rating:1.5 Amp MaxInsulation Resistance:500M-ohm
Voltage rating:150 VoltsContact resistance:20m-ohm
Dielectric Withstand Voltage:1000 V AC RMS, 60HZ 1 minHousing:PC UL94V-0
IDC:PC UL 94V-0,Accept 22-26 AWG Solid WirePCB:FR4 1.6mm (0.04") thickness,2 layers

Specifications:

All of the Keystone Jacks meet

A.    TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements

B.    TIA/EIA TSB-40

C.    ISO/IEC Generic Cabling Standard 11801

D.    CENELEC Generic Cabling Standard EN50173

Termination available for Krone-110-DUAL Type



Electrical:

According to UL 1863

Current rating: 1.5 Amp Max

Contact resistance: 20m-ohm

Insulation Resistance: 500M-ohm

Dielectric Withstand Voltage: 1000 V AC RMS, 60HZ 1 min



Material:

Housing: PC UL94V-0

IDC: PC UL 94V-0, Accept 22-26 AWG Solid Wire

PCB: FR4 1.6mm (0.04") thickness,2 layers

Contact: PC UI94V-0, 0.45mm(0.018")Diameter Phosphor bronze with 3 U" to 50U" Gold plating on contact area
