1x32 PLC Splitter module

Delivery Date: 15 days Brand Name: T&J
Cable diameter: 0.9/2.0/3.0mm Cable length: 1 meter or on request
Fiber type: Single mode Fiber count: 1xN / 2xN
Connector type: LC,FC,SC,ST on request Operating wavelength: 1260~1650nm
Directivity: Min. 55dB Operating temperature: -20~+65C
Storage temperature: -40~+85C Origin: China

1x32 PLC Splitter module



T&J Industrial Co., Ltd offers PLC splitter which is high quality passive device. It is especially for passive internet (EPON, BPON, GPON). And different package can follow client's different inquiry.



Data Sheet of different PLC Splitters:

Features: Applications:
Low insertion loss and high uniform Optical fiber communication systems
Low polarization relevant FTTX application
Redundant reliability CATV network
Low cost and small volume Passive Optical Network (PON)
SurpassTelcordia requirements Optical Amplifiers

Optical Access networks / LAN

Testing equipments



SPECIFICATIONS:

Technical Parameter 1X2 1X4 1X8 1X16 1X32 1X64
Optics fiber Type SMF-28e or Customer specify
Operating wavelength(nm) 1260-1650
Insertion loss(dB) Max.(P/S) 3.8/4.0 7.2/7.4 10.5/10.7 13.5/13.7 16.5/16.9 21
Loss uniformity(dB) Max. 0.6 0.6 0.8 1.2 1.7 2.5
Return loss(dB) MIN.(P/S) 55/50 55/50 55/50 55/50 55/50 50
PDL(dB) Max. 0.2 0.2 0.3 0.3 0.3 0.4
Directivity(dB) MIN. 55 55 55 55 55 55
Wavelength Dependent Loss(dB) Max. 0.5 0.5 0.5 0.8 0.8 0.8
Temperature Dependent Loss(dB) Max. 0.5 0.5 0.5 0.8 0.8 1
Operating temperature(°C) -40-85°C
Storage temperature(°C) -40-85°C
Optics fiber length(m) 1.5(±0.1) or Customer specify
Housing dimensions(mm) PLC Optical Bare Splitters 40*4*4 40*4*4 40*4*4 50*7*4 50*7*4 60*12*4
Blockless PLC Splitter 40*4*4 50*7*4 50*7*4 60*12*4 80*20*6 /
PLC Splitter Module 90*20*10 100*80*10 100*80*10 120*80*18 120*80*18 140*115*18
Splitter ODF 160*100*30 160*100*30 160*100*60 485*295*40 485*295*40 485*295*80
Note:All specification exclude connectors









Technical Parameter 2X2 2X4 2X8 2X16 2X32 2X64
Optics fiber Type SMF-28e or Customer specify
Operating wavelength(nm) 1260-1650
Insertion loss(dB) Max. 4 7.6 11 14.5 17.5 21.5
Loss uniformity(dB) Max. 0.8 1.5 1.5 2 2.5 2.5
Return loss(dB) MIN. 50 50 50 50 50 50
PDL(dB) Max. 0.2 0.2 0.4 0.4 0.4 0.4
Directivity(dB) MIN. 55 55 55 55 55 55
Wavelength Dependent Loss(dB) Max. 0.6 0.6 0.6 0.8 1 1
Temperature Dependent Loss(dB) Max. 0.6 0.6 0.6 0.8 1 1
Operating temperature(°C) -40-85°C
Storage temperature(°C) -40-85°C
Optics fiber length(m) 1.5(±0.1) or Customer specify
Housing dimensions(mm) PLC Optical Bare Splitters 40*4*4 40*4*4 40*4*4 50*7*4 50*7*4 60*12*4
Blockless PLC Splitter 40*4*4 60*7*4 60*7*4 60*12*4 80*20*6 /
PLC Splitter Module 90*20*10 100*80*10 100*80*10 120*80*18 120*80*18 140*115*18
Splitter ODF 160*100*30 160*100*30 160*100*60 485*295*40 485*295*40 485*295*80
Note:All specification exclude connectors

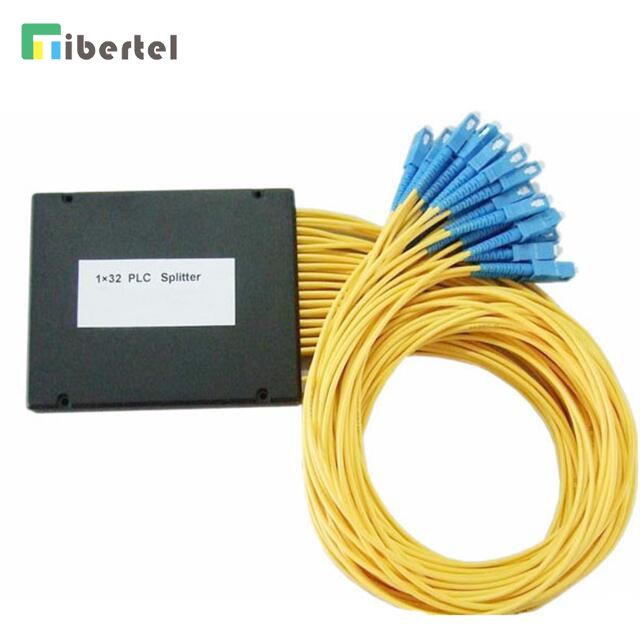

Product image of 1x32 PLC splitter module  with SC connector


Product image of PLC splitter assembled with FC/APC connectors packed into LGX-Box



Product image of 1x8 PLC splitter module with FC/APC SM connectors
