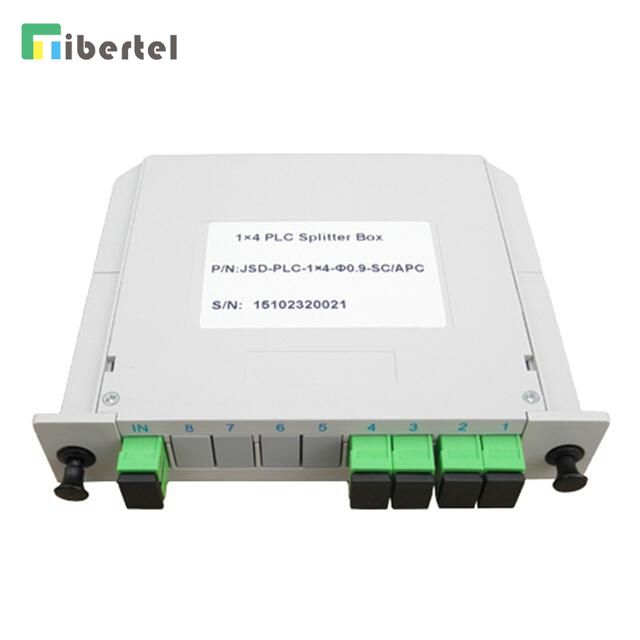

1x4 PLC Splitter Box

T&J provide PLC splitter which is high quality passive device. It is especially for passive internet (EPON, BPON, and GPON).
  • Fibertel
Availability:

Features

Low insertion loss

Low excess loss

Low PDL

High directivity

Long haul reliability

Customer defined specifications


Appications

Telecommunications

Fiber in the loop

Local area network

CATV

Fiber optic sensing

Test instruments


SPECIFICATIONS:

Technical Parameter1X21X41X81X161X321X64
Optics fiber TypeSMF-28e or Customer specify
Operating   wavelength(nm)1260-1650
Insertion loss(dB)Max.(P/S)3.8/4.07.2/7.410.5/10.713.5/13.716.5/16.921
Loss uniformity(dB)Max.0.60.60.81.21.72.5
Return loss(dB)MIN.(P/S)55/5055/5055/5055/5055/5050
PDL(dB)Max.0.20.20.30.30.30.4
Directivity(dB)MIN.555555555555
Wavelength Dependent   Loss(dB)Max.0.50.50.50.80.80.8
Temperature   Dependent Loss(dB)Max.0.50.50.50.80.81
Operating   temperature(°C)-40-85°C
Storage   temperature(°C)-40-85°C
Optics fiber   length(m)1.5(±0.1) or Customer   specify
Housing   dimensions(mm)PLC Optical Bare Splitters40*4*440*4*440*4*450*7*450*7*460*12*4
Blockless   PLC Splitter40*4*450*7*450*7*460*12*480*20*6/
PLC   Splitter Module90*20*10100*80*10100*80*10120*80*18120*80*18140*115*18
Splitter   ODF160*100*30160*100*30160*100*60485*295*40485*295*40485*295*80
Note:All   specification exclude connectors









Technical Parameter2X22X42X82X162X322X64
Optics fiber TypeSMF-28e or Customer specify
Operating   wavelength(nm)1260-1650
Insertion loss(dB)Max.47.61114.517.521.5
Loss uniformity(dB)Max.0.81.51.522.52.5
Return loss(dB)MIN.505050505050
PDL(dB)Max.0.20.20.40.40.40.4
Directivity(dB)MIN.555555555555
Wavelength Dependent   Loss(dB)Max.0.60.60.60.811
Temperature   Dependent Loss(dB)Max.0.60.60.60.811
Operating   temperature(°C)-40-85°C
Storage   temperature(°C)-40-85°C
Optics fiber   length(m)1.5(±0.1) or Customer   specify
Housing   dimensions(mm)PLC Optical Bare Splitters40*4*440*4*440*4*450*7*450*7*460*12*4
Blockless   PLC Splitter40*4*460*7*460*7*460*12*480*20*6/
PLC   Splitter Module90*20*10100*80*10100*80*10120*80*18120*80*18140*115*18
Splitter   ODF160*100*30160*100*30160*100*60485*295*40485*295*40485*295*80
Note:All   specification exclude connectors
