| Features: | Applications: |
| Low insertion loss and high uniform | Optical fiber communication systems |
| Low polarization relevant | FTTX application |
| Redundant reliability | CATV network |
| Low cost and small volume | Passive Optical Network (PON) |
| SurpassTelcordia requirements | Optical Amplifiers |
| Optical Access networks / LAN |
| Testing equipments |
SPECIFICATIONS: |
| Technical Parameter | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Optics fiber Type | SMF-28e or Customer specify |
| Operating wavelength(nm) | 1260-1650 |
| Insertion loss(dB) | Max.(P/S) | 3.8/4.0 | 7.2/7.4 | 10.5/10.7 | 13.5/13.7 | 16.5/16.9 | 21 |
| Loss uniformity(dB) | Max. | 0.6 | 0.6 | 0.8 | 1.2 | 1.7 | 2.5 |
| Return loss(dB) | MIN.(P/S) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 50 |
| PDL(dB) | Max. | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity(dB) | MIN. | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | Max. | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 0.8 |
| Temperature Dependent Loss(dB) | Max. | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 |
| Operating temperature(°C) | -40-85°C |
| Storage temperature(°C) | -40-85°C |
| Optics fiber length(m) | 1.5(±0.1) or Customer specify |

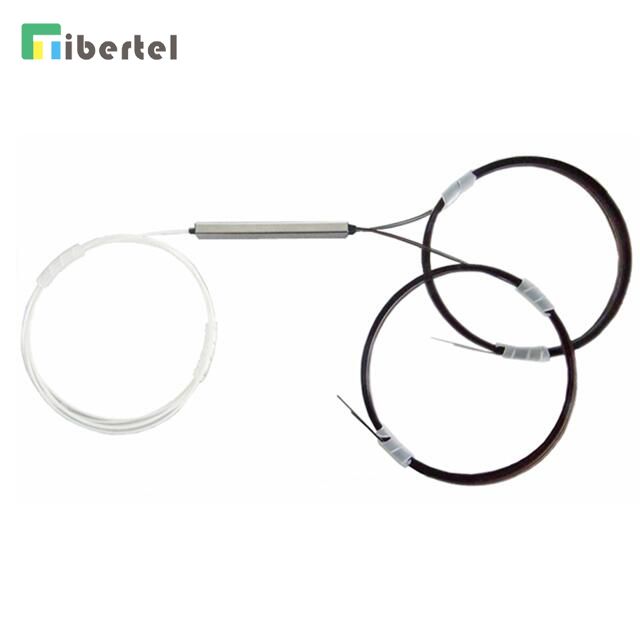

| Housing dimensions(mm) | PLC Optical Bare Splitters | 40*4*4 | 40*4*4 | 40*4*4 | 50*7*4 | 50*7*4 | 60*12*4 |
| Blockless PLC Splitter | 40*4*4 | 50*7*4 | 50*7*4 | 60*12*4 | 80*20*6 | / |
| PLC Splitter Module | 90*20*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
| Splitter ODF | 160*100*30 | 160*100*30 | 160*100*60 | 485*295*40 | 485*295*40 | 485*295*80 |
| Note:All specification exclude connectors |
|
|
|
|
|
|
|
|
|
| Technical Parameter | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Optics fiber Type | SMF-28e or Customer specify |
| Operating wavelength(nm) | 1260-1650 |
| Insertion loss(dB) | Max. | 4 | 7.6 | 11 | 14.5 | 17.5 | 21.5 |
| Loss uniformity(dB) | Max. | 0.8 | 1.5 | 1.5 | 2 | 2.5 | 2.5 |
| Return loss(dB) | MIN. | 50 | 50 | 50 | 50 | 50 | 50 |
| PDL(dB) | Max. | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.4 |
| Directivity(dB) | MIN. | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | Max. | 0.6 | 0.6 | 0.6 | 0.8 | 1 | 1 |
| Temperature Dependent Loss(dB) | Max. | 0.6 | 0.6 | 0.6 | 0.8 | 1 | 1 |
| Operating temperature(°C) | -40-85°C |
| Storage temperature(°C) | -40-85°C |
| Optics fiber length(m) | 1.5(±0.1) or Customer specify |
| Housing dimensions(mm) | PLC Optical Bare Splitters | 40*4*4 | 40*4*4 | 40*4*4 | 50*7*4 | 50*7*4 | 60*12*4 |
| Blockless PLC Splitter | 40*4*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | / |
| PLC Splitter Module | 90*20*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 |
| Splitter ODF | 160*100*30 | 160*100*30 | 160*100*60 | 485*295*40 | 485*295*40 | 485*295*80 |
| Note:All specification exclude connectors |
