Delivery Date: | 15 days | Brand Name: | T&J |
---|---|---|---|
Type: | PLC LGX Box | Cable diameter: | 0.9/2.0/3.0mm |
Cable length: | 1 meter or on request | Fiber type: | Single mode |
Fiber count: | 1xN / 2xN / fused coupler | Connector type: | LC,FC,SC,ST on request |
Optical Fiber Type: | SM-28e with 3mm cable or customer specified | Operating wavelength(nm): | 1260-1650 |
Box color: | Ivory or Black | Origin: | China |
Delivery Date: | 15 days | Brand Name: | T&J |
---|---|---|---|
Type: | PLC LGX Box | Cable diameter: | 0.9/2.0/3.0mm |
Cable length: | 1 meter or on request | Fiber type: | Single mode |
Fiber count: | 1xN / 2xN / fused coupler | Connector type: | LC,FC,SC,ST on request |
Optical Fiber Type: | SM-28e with 3mm cable or customer specified | Operating wavelength(nm): | 1260-1650 |
Box color: | Ivory or Black | Origin: | China |

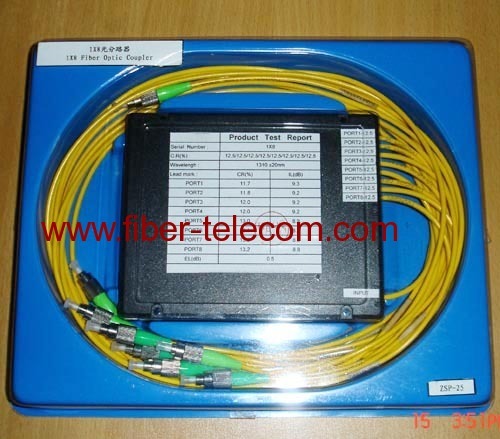

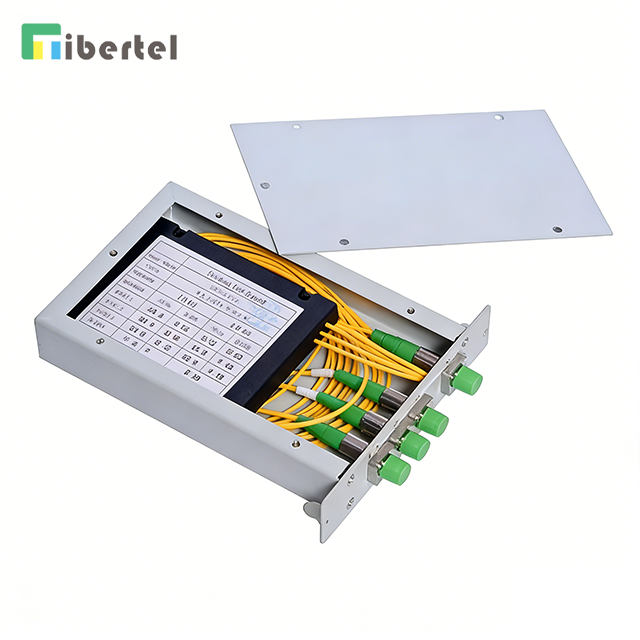

T&J Industrial Co., Ltd offers LGX Box PLC splitter which is high quality passive device. It is especially for passive internet (EPON, BPON, GPON). And different package can follow client's different inquiry.
Data Sheet of different PLC Splitters:
Features: | Applications: | |||||||
Low insertion loss and high uniform | Optical fiber communication systems | |||||||
Low polarization relevant | FTTX application | |||||||
Redundant reliability | CATV network | |||||||
Low cost and small volume | Passive Optical Network (PON) | |||||||
SurpassTelcordia requirements | Optical Amplifiers | |||||||
Optical Access networks / LAN | ||||||||
Testing equipments | ||||||||
SPECIFICATIONS: | ||||||||
Technical Parameter | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | ||
Optics fiber Type | SMF-28e or Customer specify | |||||||
Operating wavelength(nm) | 1260-1650 | |||||||
Insertion loss(dB) | Max.(P/S) | 3.8/4.0 | 7.2/7.4 | 10.5/10.7 | 13.5/13.7 | 16.5/16.9 | 21 | |
Loss uniformity(dB) | Max. | 0.6 | 0.6 | 0.8 | 1.2 | 1.7 | 2.5 | |
Return loss(dB) | MIN.(P/S) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 50 | |
PDL(dB) | Max. | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
Directivity(dB) | MIN. | 55 | 55 | 55 | 55 | 55 | 55 | |
Wavelength Dependent Loss(dB) | Max. | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 0.8 | |
Temperature Dependent Loss(dB) | Max. | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 | |
Operating temperature(°C) | -40-85°C | |||||||
Storage temperature(°C) | -40-85°C | |||||||
Optics fiber length(m) | 1.5(±0.1) or Customer specify | |||||||
Housing dimensions(mm) | PLC Optical Bare Splitters | 40*4*4 | 40*4*4 | 40*4*4 | 50*7*4 | 50*7*4 | 60*12*4 | |
Blockless PLC Splitter | 40*4*4 | 50*7*4 | 50*7*4 | 60*12*4 | 80*20*6 | / | ||
PLC Splitter Module | 90*20*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 | ||
Splitter ODF | 160*100*30 | 160*100*30 | 160*100*60 | 485*295*40 | 485*295*40 | 485*295*80 | ||
Note:All specification exclude connectors | ||||||||
Technical Parameter | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | ||
Optics fiber Type | SMF-28e or Customer specify | |||||||
Operating wavelength(nm) | 1260-1650 | |||||||
Insertion loss(dB) | Max. | 4 | 7.6 | 11 | 14.5 | 17.5 | 21.5 | |
Loss uniformity(dB) | Max. | 0.8 | 1.5 | 1.5 | 2 | 2.5 | 2.5 | |
Return loss(dB) | MIN. | 50 | 50 | 50 | 50 | 50 | 50 | |
PDL(dB) | Max. | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.4 | |
Directivity(dB) | MIN. | 55 | 55 | 55 | 55 | 55 | 55 | |
Wavelength Dependent Loss(dB) | Max. | 0.6 | 0.6 | 0.6 | 0.8 | 1 | 1 | |
Temperature Dependent Loss(dB) | Max. | 0.6 | 0.6 | 0.6 | 0.8 | 1 | 1 | |
Operating temperature(°C) | -40-85°C | |||||||
Storage temperature(°C) | -40-85°C | |||||||
Optics fiber length(m) | 1.5(±0.1) or Customer specify | |||||||
Housing dimensions(mm) | PLC Optical Bare Splitters | 40*4*4 | 40*4*4 | 40*4*4 | 50*7*4 | 50*7*4 | 60*12*4 | |
Blockless PLC Splitter | 40*4*4 | 60*7*4 | 60*7*4 | 60*12*4 | 80*20*6 | / | ||
PLC Splitter Module | 90*20*10 | 100*80*10 | 100*80*10 | 120*80*18 | 120*80*18 | 140*115*18 | ||
Splitter ODF | 160*100*30 | 160*100*30 | 160*100*60 | 485*295*40 | 485*295*40 | 485*295*80 | ||
Note:All specification exclude connectors |
