FTTH Terminal Box 4cores
Home » Products » FTTx Solutions » Fiber optic terminal box » FTTH Terminal Box 4cores

PRODUCTS

Share to:

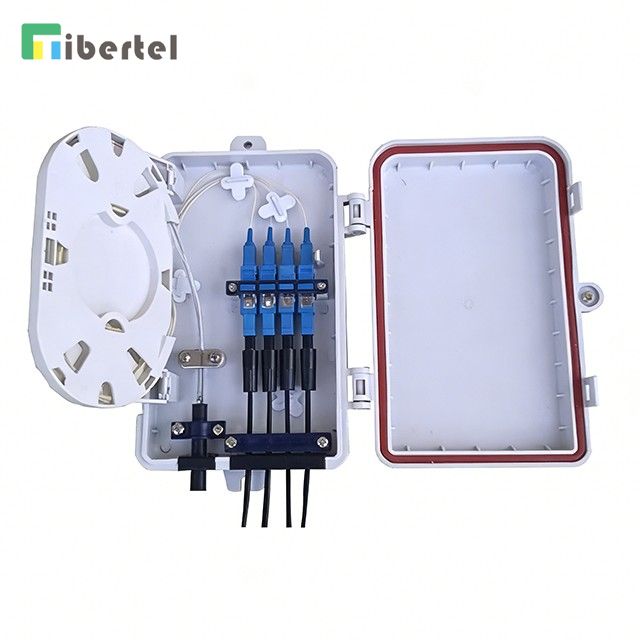

FTTH Terminal Box 4cores

  • TJ01E2204
  • Fibertel
Availability:
Delivery Date:15-working daysBrand Name:Fibertel
Model:TJ01E2204Material:High impact plastic
Adaptor:SC, LC, FC, ST etc.Max. capacity:4 fibers
Application:FTTH indoor/outdoor installationCable entry ports:2 inlet ports & 4~32 outlet ports
Environmental Temperature:-25~+60CWaterproof:Yes
Color:white or on requestOrigin:China

Features

1.  Industry Standard User Interface is made of high impact plastic.

2.  Can accommodate 1x4, 1x8, 1x16 & 1x32 PLC splitter.

3.  Anti-UV, Ultra violet resistant and rainfall resistant.

4.  Up to 32 FTTH drops.

5.  Wall and pole mountable.

6.  2 inlet ports, 4~32 outlet ports.



Application

1.widely used in FTTH access network.

2.Telecommunication Networks.

3.CATV Networks.

4.Local Area Networks.

5.Date communication Networks.


Ordering information

Model

Capacity

Size

TJ01E2204

4 port

210mm(W)x140mm(D)x40mm(D)

TJ01E2208

8 port

205mm(W)x215mm(D)x55mm(D)

TJ01E2212

12 port

260mm(W)x320mm(D)x90mm(D)

TJ01E2216

16 port

260mm(W)x320mm(D)x90mm(D)

TJ01E2232

32 port

350mm(W)x320mm(D)x120mm(D)
