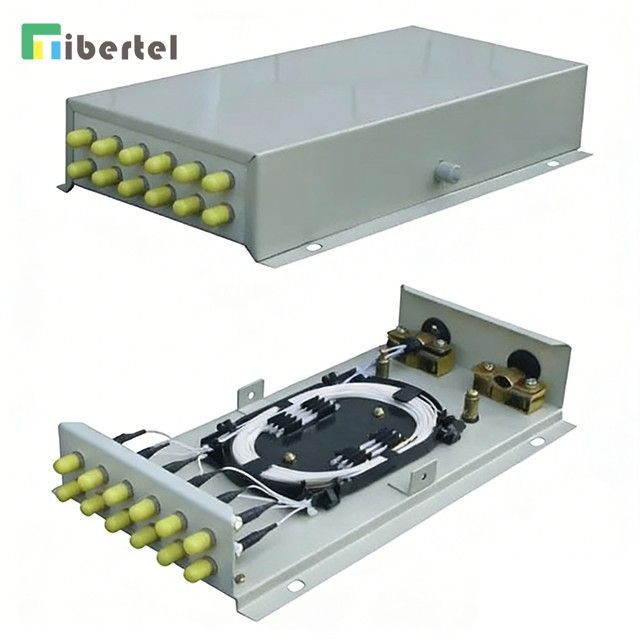

Dimension: 300x40x120mm
Capacity: 12-fibers
Material of patch panel: Cold Rolled Steel
Thickness: 1.0mm
Color: Black and Ivory white available.
Standard Accessories:
Cable trays, Adaptor panels (type on request), Splice sleeves, Cable ties, Insulation tape, Panel holder and Screws.
Specifications:
Wall Mounted standard installation interface.
The box use good quality Cold Rolled Steel material,.
Surface with Electrostatic Spray.
Fiber core available in 8-144 fibers, trays available to add as per requested.
Available for bunchy and ribbon cables.
Available for LC, SC, FC, ST, MU, MTRJ and E2000 adaptors.
Enough space for operating.
Operation Conditions:
Working temperature: -25℃~ +55℃
Relative humidity: = 85% (30℃)
Atmosphere pressure: 70 ~ 106Kpa
Insulation resistance: ≥2x104MΩ / 500VDC
Order guide:
Type | Dimension (mm) | Max capacity | Remark |
TB02A | 300*50*130 | 24 | The body is made from cold rolled steel sheet, and the surface use the technique of electrostatic spraying, 24 outer for adaptors. Available for FC, SC, ST |
TB02B | 300*35*120 | 12 |
TB02C | 300*50*130 | 12 |
