TJ01ET16H
Fibertel

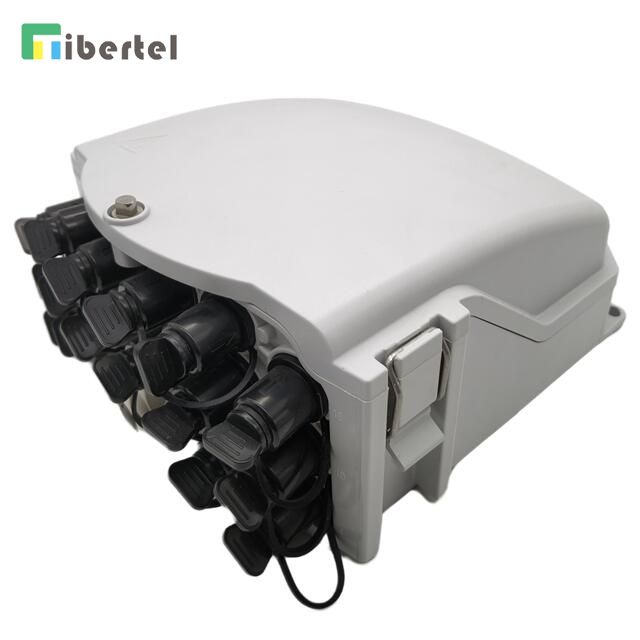

TJ01ET16H Fiber access terminal is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
Water-proof design with IP-65 protection level for outdoor.
Integrated with 2 x splice trays.
Fiber bend radius control more than 40mm.
1 x mid-span cable entrance for uncut cable with maximum diameter 12mm.
Maximum 32F splice capacity.
1x8 PLC splitter can be installed in each splice tray.

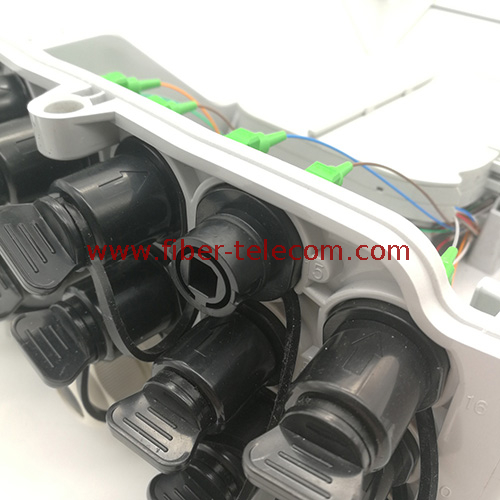

16pcs of pre-installed reinforced water-proof adapters for SC.
Easy for maintenance and expansion.
Applications
Wall mounted installation
Pole mounted installation
Aerial hanging installation
Suitable for Huawei pre connector drop cable with reinforced connector
Specifications
| Material | PC/ABS |
| Dimension | 227x205x117mm |
| Max. Capacity | 2pcs x 16FO splice trays / 2pcs x 1*8 PLC splitters |
| Adaptors | 16pcs x SC/APC or SC/UPC |
| Weight | 1.1kgs |
