TJ01E16DP
Fibertel
Description

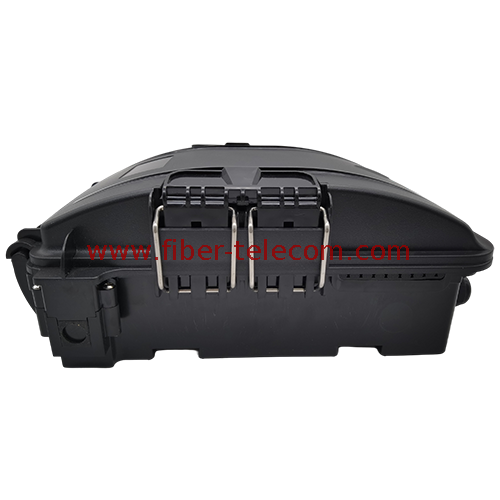

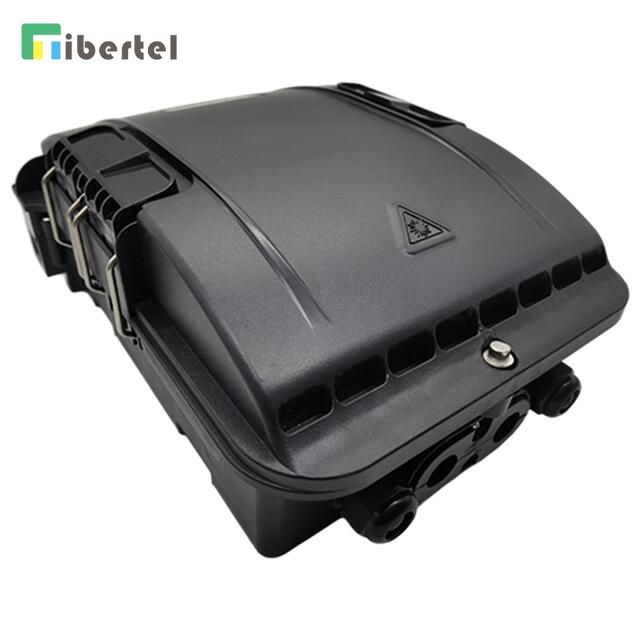

The 2021 New design of Fiber Terminal Boxes by T&J is incorporating the design concept of a racing car, the streamlined design makes the box better appearance, and the three-sided cable out-port design makes the installation much easier and convenient.
It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
Special Streamlined design.
Three-sided cable out-port design.
Application for both Wall mounting and Pole installation.
Outdoor application and good UV resistant.
With different options of interior configurations.
Maximum 96F splice capacity, stainless anti-rust bolts and nuts.
Easy for maintenance and expansion.
Fiber bend radius control more than 35mm.
180 degree access with 2pcs of buckled lock structure.
Designed position for max. 4pcs of 1x8 or 1pc of 1x16 PLC splitter.
1 mid-span cable entrance (10-14mm) for uncut cable and 4 reserved cable entrances for distribution cable gland (8-12mm)
Protection level: IP6
Specification
Model | TJ01E16DA | TJ01E16DP | TJ01E32DP |
Interior configurations | Adaptor panel + Splicing trays | PLC splitter box with rotatable SC adaptors + Splicing trays | 2 layers of PLC splitter box + Splicing trays |
Max. Capacity of PLC splitter | 2pcs of 1x8 Or 1pc of 1x16 | 2pcs of 1x8 Or 1pc of 1x16 | 4pcs of 1x8 Or 2pc of 1x16 |
Max. Capacity of Splicing | 96 fibers (4 trays x 24F) | 48 fibers (2 trays x 24F) | 48 fibers (2 trays x 24F) |
No. of Adaptor | 16pcs of SC | 16pcs of SC | 32pcs of SC |
Box dimension (mm) | 290*210*115 | ||
Weight (kgs) | 1.18 | 1.20 | 1.30 |
Material of box | PC+ABS (UV Resistant) | ||
Color of box | Black or on request | ||
Standard Accessories

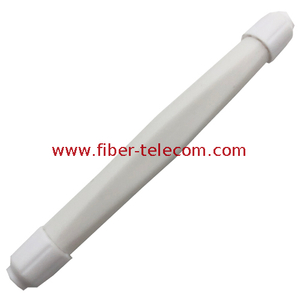

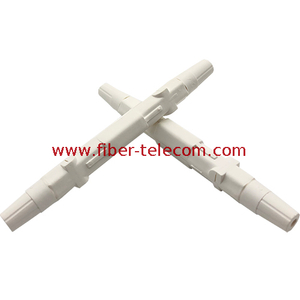

Splice trays, wall mounted kits, fiber protective sleeves, patch panel, cable protection sleeves, key, PG 13.5 cable glands for distribution ports. And Pole mounted kits (optional accessories).
