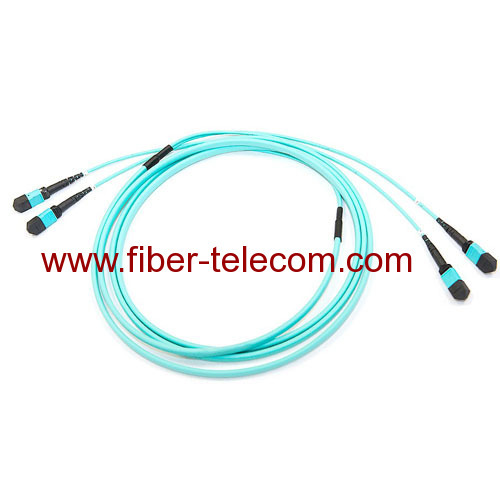

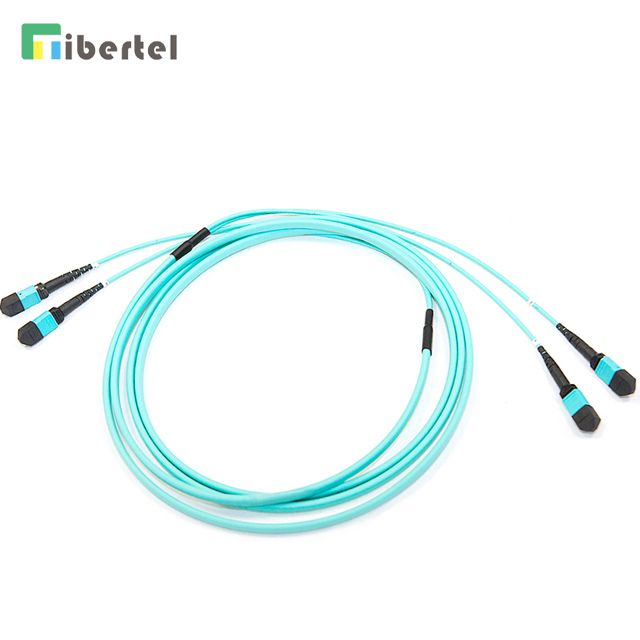

MPO trunk cable provided by T&J Industrial Co., Ltd is conducive for the rapid deployment of the data center and fiber infrastructure environment. Across the connection of MDA, HDA and EDA by MPO cassette or harness cable, the high-efficiency plug and play architecture greatly reduces the initial installation and routine maintenance costs.
MPO Cable is made by high quality fiber cable and MPO accessories, low insertion loss and high return loss is working perfectly on current high speed network.
Features:
1. 12-144 fibers available.
2. With a 12F or 24F MPO connector, perfectly reduce the breakdown and cabling space.
3. 10G upgrade to 40G/100G steady, support delay index of 100G
4. Multi-Mode MO3/OM4, Single-Mode G625D, G657A2 fibers can be chosen according to the configuration.
5. Mini round cable design, realize the bending radius smaller, convenience and fast installation.
6. With a dust-proof, crush resistance, tension resistance protection tube on both ends which can protect the fiber cable and connector from damage during transportation and installation.
Specifications:
Fiber Type | SM | MM |
Insertion Loss | Typical (dB) | 0.35 | 0.35 |
Max(dB) | 0.60 | 0.50 |
Return Loss (dB) | ≥60(APC) | ≥25(PC) |
≥50(PC) |
Male/Female | M:with pin F:without pin |
Durability (dB) | ≤0.2 200 mating |
Working Temperature (℃) | －40 ～+85 |
Testing Wavelength (nm) | 1310 | 850 |
Fiber Count | 12 | 24 | 48 | 72 | 96 | 144 |
Distribution Length(cm) | 30~150 |
Max. Installation Tension(N) | 500 | 500 | 700 | 700 | 700 | 700 |
Cable Max. Bending Radius (static)mm | 10D |
Cable Min. Bending Radius(dynamic)mm | 20D |
Working Temperature (℃): | -20℃～+60℃ |
