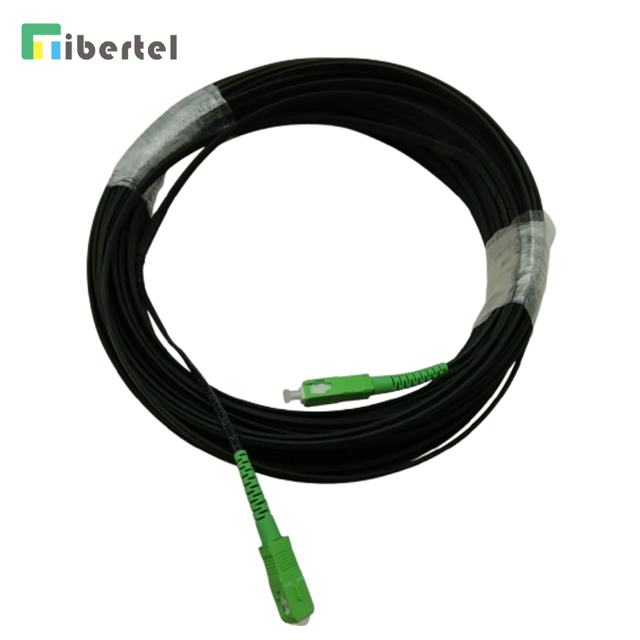

Name: Single-Mode Pigtail (Outdoor)
Brand: Fibertel
Rating: 5.0 (28 reviews)

Single-Mode Pigtail (Outdoor)

Home » Products » FTTx Solutions » Fiber optic patch cord » Single-Mode Pigtail (Outdoor)

PRODUCTS

Model Number

SC/UPC or SC/APC,SM per IEC 61754-4

Place of Origin

Zhejiang, China

Brand Name

Fibertel

Use

FTTH/ FTTB/ FTTx

Warranty Time

1 year

Network

None

Product name

FTTH Outdoor Patch Cord with Galvanized or Phosphated steel wires

Connector Type

SC/UPC or SC/APC,SM per IEC 61754-4

Fiber Type

G657A1, G657A2 single mode

Number of Fiber

1 fiber

Cable

2.0*5.0mm

Material of Outer Jacket

LSZH non-flame retardant

Jacket Color

Black or on Request

Cable Length

1m/2m/3m/5m or on Request

Application

FTTH/ FTTB/ FTTx

Working temperature

-20℃ to + 60℃

Ptach Cord FTTH Outdoor Galvanized/ Phosphated

RECOMMRND PRODUCTS

LC-LC Single Mode Simplex Fiber Optic Patch Cord

LC to SC APC Duplex SM Single Mode Optical Fiber Jumper

SC to SC OM3 Duplex Fiber Optical Patch Cord

SC to SC MM Simplex Fiber Optic Jumper

MU-MU Multi mode Simplex Fiber Patch Lead 1M

SC to SC Single Mode Duplex Fiber Optical Patch Lead

SC-SC Single Mode Simplex Fiber Patch Cable 1M

SC to SC OM3 Simplex Fiber Optical Patch Cable

ST to ST MM OM3 Simplex Fiber Patch Cord

LC to LC SM Simplex Fiber Optical Patch Cord

ST to ST Single Mode Duplex Fiber Optical Patch Cable

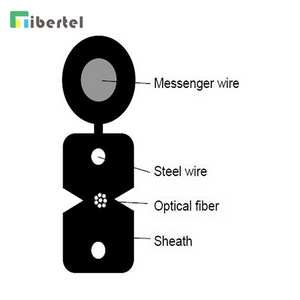

GJYXCH-8B6 FTTH Drop Cable 8 Core Fig.8 with 0.4mm Steel Wire Strength Member

GJXH-4B6 FTTH Indoor Cable 4 Core with 0.4mm Steel Wire Strength Member

GJYXFCH-4B6 FTTH Drop Cable 4 Fiber Fig.8 with 0.5mm FRP Strength Member

GJXH Low Friction FTTH Indoor Cable

GYPFHA-4B6 FTTH Duct Cable 4 Core with 0.5mm FRP Strength Member

GJXH-6B6 FTTH Indoor Cable 6 Core with 0.4mm Steel Wire Strength Member

GJYXFCH-6B6 FTTH Drop Cable 6 Fiber Fig.8 with 0.5mm FRP Strength Member

GJXFH-6B6 FTTH Indoor Cable 6 Core with 0.5mm FRP Strength Member

GYPHA-2B6 FTTH Duct Cable 2 Core with Steel Wire Strength Member

Item	Contents	Unit	Value
Fiber Type	/	/	G657A1, G657A2 single mode
Fiber Count	/	/	1 fiber
Fiber Color	/	/	Blue or on request
Strength member	Material	/	Galvanized Steel Wire or Phosphated steel wire
Strength member	Diameter	mm	0.45 or 0.4
Messenger wire	Material	/	Galvanized Steel Wire
Messenger wire	Diameter	mm	1.2 or 1.0
Outer jacket	Dimension	mm	5.0(±0.2)*2.0(±0.1)
	Material	/	LSZH
	Color	/	Black
Tensile performance	Short term	N	1200 (under the fiber strain ≤0.6%)
Tensile performance	Long term	N	800
Tensile performance without messenger wire	Short term	N	600
Tensile performance without messenger wire	Long term	N	300
Crush	Short term	N/100mm	2200
Crush	Long term	N/100mm	1000
Min. Bending Radius	Static	mm	15
Min. Bending Radius	Dynamic	mm	30
Cable attenuation		dB/km	≤ 0.35 at 1310nm, ≤ 0.21 at 1550nm
Cable weight (Approx.)		kg/km	20
Working Temperature		/	-20℃ to +70℃
Storage Temperature		/	-20℃ to +70℃

Item	Contents	Unit	Value
Fiber Type	/	/	G657A1, G657A2 single mode
Fiber Count	/	/	1 fiber
Fiber Color	/	/	Blue or on request
Strength member	Material	/	Galvanized Steel Wire or Phosphated steel wire
Strength member	Diameter	mm	0.45 or 0.4
Messenger wire	Material	/	Galvanized Steel Wire
Messenger wire	Diameter	mm	1.2 or 1.0
Outer jacket	Dimension	mm	5.0(±0.2)*2.0(±0.1)
	Material	/	LSZH
	Color	/	Black
Tensile performance	Short term	N	1200 (under the fiber strain ≤0.6%)
Tensile performance	Long term	N	800
Tensile performance without messenger wire	Short term	N	600
Tensile performance without messenger wire	Long term	N	300
Crush	Short term	N/100mm	2200
Crush	Long term	N/100mm	1000
Min. Bending Radius	Static	mm	15
Min. Bending Radius	Dynamic	mm	30
Cable attenuation		dB/km	≤ 0.35 at 1310nm, ≤ 0.21 at 1550nm
Cable weight (Approx.)		kg/km	20
Working Temperature		/	-20℃ to +70℃
Storage Temperature		/	-20℃ to +70℃

Availability:



Inquire Add to Basket
