Description:

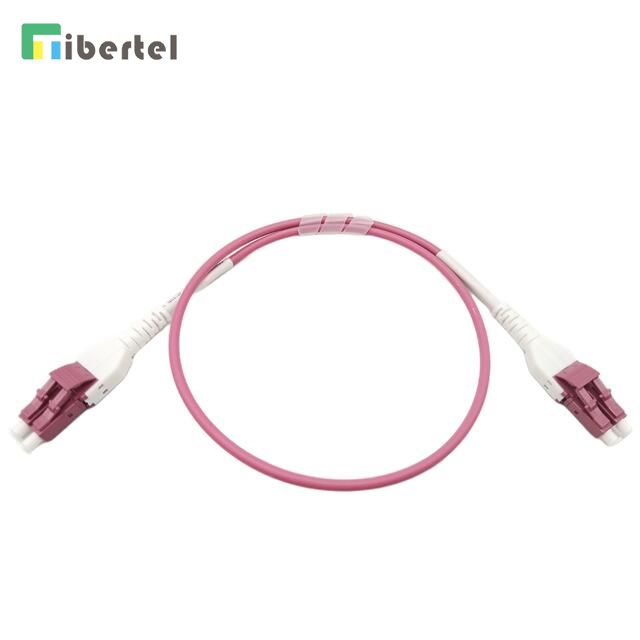

Fibertel provides fiber optic patch cords / pigtails with the highest level of connectivity for all your fiber interconnect applications.
Manufactured and tested to the tightest specifications. Fibertel patch cords meet Telcordia GR-326 requirements. Our precision zirconia ferrules and environmentally rugged connectors and cable assemblies ensure lasting, repeatable connections.
Applications:
• Fast Ethernet, Data Communication LAN and WAN.
• High-speed Enterprise Serves.
• Multiplexors, Switches, and Routers.
• Optical Access and ATM Networks Equipment.
• Optical Transport and Telecommunications Switching Equipment.
Features:
• Excellent Return Loss.
• Ultra Low Insertion Loss.
• Single mode and Multimode.
• Simplex and Duplex. Performance Specifications:
• FC, SC, ST, LC, MU, MT-RJ, DIN, E2000 and MPO.
• PC, UPC or APC.
• Telcordia GR-326 Compliant.
• Available in 3.0mm, 2.0mm, and 0.9mm
• Cable Jacket: PVC or LSZH
• Fiber: Tight-buffer or Easy-strip.
Technical Indication:
Type | Single Mode PC / UPC | Single Mode APC | Multi Mode PC / UPC |
Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB |
Return Loss | ≥50dB | ≥60dB | ≥35dB |
Storage Temperature | -40℃~+75℃ | -40℃~+75℃ | -40℃~+75℃ |
Working Temperature | -40℃~+70℃ | -40℃~+70℃ | -40℃~+70℃ |
Repeatability of IL | ≤0.1dB |
Service life | 1000 mates / damate cycles |
