T&J fiber optic patch cords provide the highest level of connectivity for all your fiber interconnect applications.
Manufactored and tested to the tightest specifications. T&J patch cords meet Telcordia GR-326 requirements. Our precision zirconia ferrules and exvironmentally rugged connectors and cable assemblies ensure lasting, repeatable connections.
Applications:
Ethernet, Data Communication LAN and WAN.
• Fast • High-speed Enterprise Serves.
• Multiplexors, Switches, and Routers.
• Optical Access and ATM Networks Equipment.
• Optical Transport and Telecommunications Switching Equipment
Features:
• Excellent Return Loss.
• Ultra Low Insertion Loss.
• Singlemode or Multimode.
• SC.
• Telcordia GR-326 Compliant.
• Available in 1.6/2.0/3.0mm
• Cable Jacket: PVC or LSZH.
• Fiber: Tight-buffer or Easy-strip.
Item | Description |

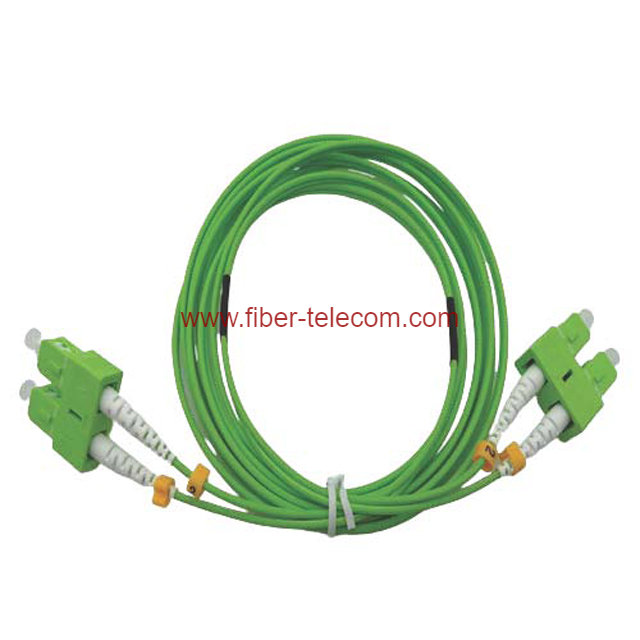

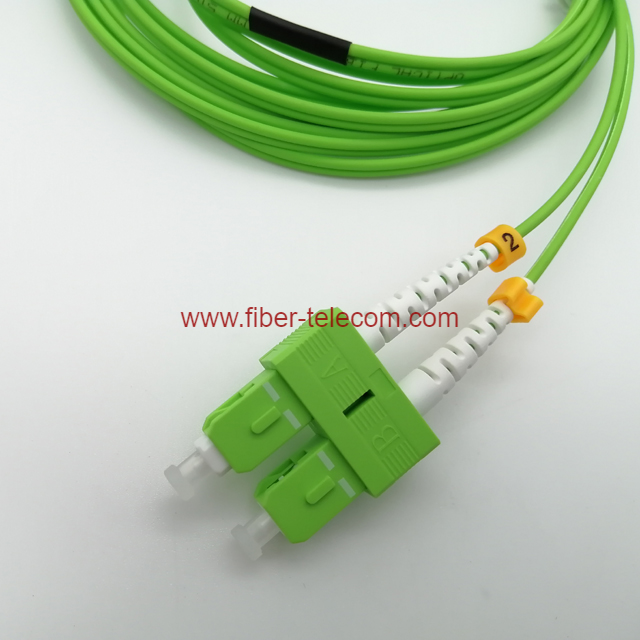

Product Name | SC to SC Optical Fiber Patch Cord Duplex |
Part No. | SC-SC |
Fiber Count | 2 Fibers |
Fiber Type | All SM and MM available |
Jacket Color | Green or on request |
Jacket Material | PVC or LSZH |
Insertion Loss | ≤0.2dB |
Return Loss | ≥35dB |
Durability | ≤0.2 @200 matingdB |
Working Temperature | -40℃～+85℃ |
