Delivery Date: | 20-working days | Brand Name: | T&J |
---|---|---|---|
Model No.: | KSJ6A01U/TJ02D6002 | Type: | CAT.6A |
Current rating: | 1.5Amps | Insulation Resistance: | 500 Megaohm |
DC Resistance: | 0.1 ohm MAX | Voltage: | 150 VAC max |
Insertion life: | =>750 mating cycles | Plug retention force: | 89N |
IDC accept: | 22-26 AWG solid wire | Wire Scheme: | T568A/B |
Delivery Date: | 20-working days | Brand Name: | T&J |
---|---|---|---|
Model No.: | KSJ6A01U/TJ02D6002 | Type: | CAT.6A |
Current rating: | 1.5Amps | Insulation Resistance: | 500 Megaohm |
DC Resistance: | 0.1 ohm MAX | Voltage: | 150 VAC max |
Insertion life: | =>750 mating cycles | Plug retention force: | 89N |
IDC accept: | 22-26 AWG solid wire | Wire Scheme: | T568A/B |
Technical Datails:
Current Rating: 1.5 Amps
Insulation Resistance: 500 Megaohm
DC Resistance: 0.1 ohm MAX
Voltage: 150 VAC Max
Insertion Life: => 750 Mating Cycles
Plug Retention Force: 89N
Temperature: -60C to +70C
IDC Accept: 22-26 AWG Solid Wire
Wire Scheme: T568A/B
Material:
Housing: High-Impact flame retardant polycarbonate, UL94V-0
Shield: Zinc Die Casting
Spring Wire: Phosphor Bronze with gold-plated 6U"/15U"/30U"/50U"
IDC Contact: Phosphor Bronze with Tin-plated 50U"
PCB Design: two PCB design
Ordering Information:

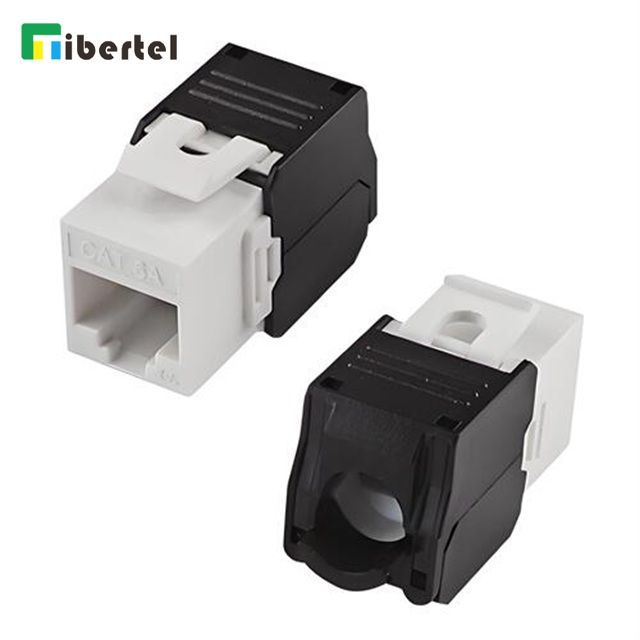

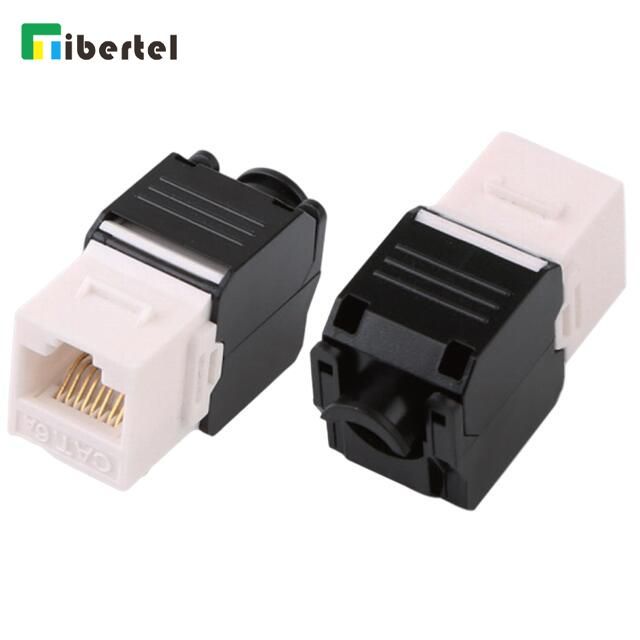

CAT.6A UTP Keystone Jack only
Patch panel loaded with CAT.6a UTP keyston jack 24-port
