TJ06FZAxx
Fibertel
Availability: | |
---|---|
O- ring(EPDM), Connector(POM), Lock Nut(POM) , Body(PC), Silicone pad(Silicon Rubber).

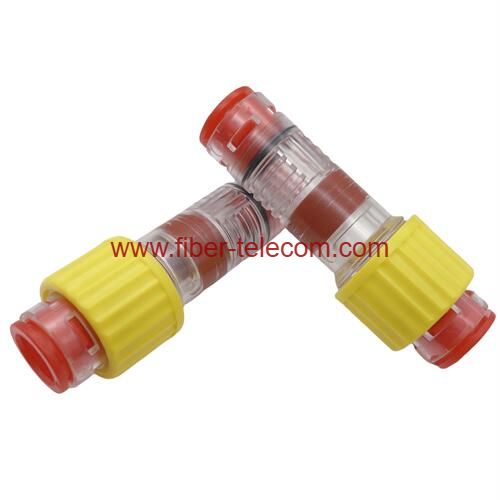

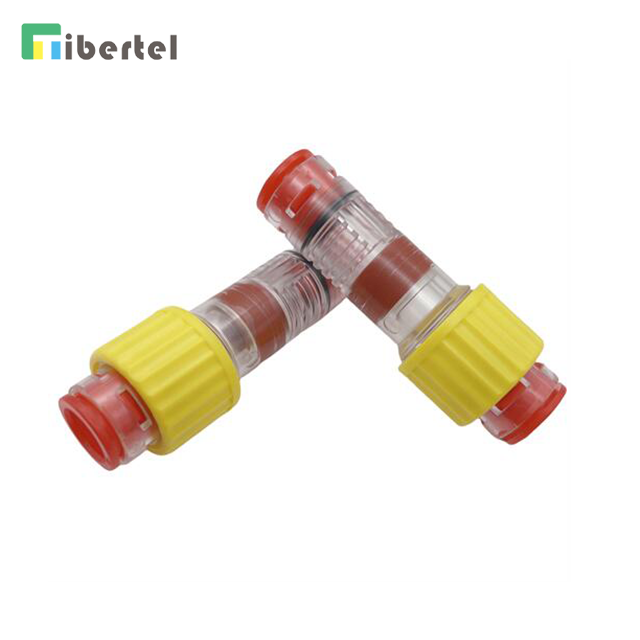

Product Name | Microduct Gas-block Connector |
Part No. | TJ06FZAxx |
Outer diameter of pipe (mm) | Dia. 3/4/5/6/7/8/10/12/16/18/20 |
Working with fluids | Air |
Tightness | 0.15-0.8 Mpa |
Pull test | 400N |
Proof pressure | 2.5 Mpa |
Operating pressure range | 0~1.6 Mpa |
Ambient temperature | -40~+60℃ |
Fluid temperature | -40~+60℃ |
Protection level | IP68 |
Insertion force | Max. 50N (5kgs) |
Dimensions | |||
Part No. | Pipe OD/ID | Pipe OD/ID | Cable Blocking Range |
TJ06FZA05-5/3.5 | 5/3.5 | 5/3.5 | 0.9~2.5 |
TJ06FZA07-7/5.5 | 7/5.5 | 7/5.5 | 0.9~2.5 |
TJ06FZA08-8/6 | 8/6 | 8/6 | 0.9~2.5 |
TJ06FZA10-10/8 | 10/8 | 10/8 | 4~8 |
TJ06FZA12-12/6 | 12/10 | 12/10 | 3-6 |
TJ06 FZA12-12/8 | 12/10 | 12/10 | 5-8 |
TJ06FZA14-14/6 | 14/10 | 14/10 | 3-6 |
TJ06FZA14-14/8 | 14/10 | 14/10 | 5-8 |
TJ06FZA14-14/10 | 14/10 | 14/10 | 7~10 |
TJ06FZA16-16/6 | 16/12 | 16/12 | 3-6 |
TJ06FZA16-16/8 | 16/12 | 16/12 | 5-8 |
TJ06FZA16-16/10 | 16/12 | 16/12 | 7~10 |
TJ06FZA18-18/14 | 18/15 | 18/15 | 5-8 |
TJ06FZA18-18/14 | 18/15 | 18/15 | 7~10 |
TJ06FZA18-18/14 | 18/15 | 18/15 | 9~12 |
TJ06FZA20-20/16 | 20/16 | 20/16 | 12~16 |
