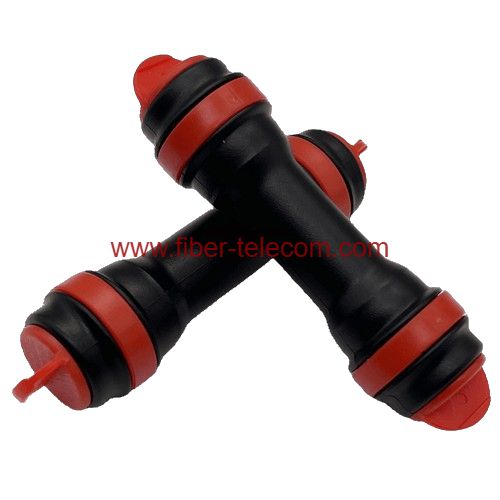

TJ06DBSxx
The Driect Buried Straight Connector TJ06DBSxx serious is suitable for the Pipe made from PE. Nylon and Polyurethane. Contains the components of Button(POM) , Card(POM), Zine Parts (Zine), Circlip(SUS31/304), Retaining ring (POM), Seal ring(EPDM), Plastic shell(PC).
The microduct direct burial connectors is a specialized connection used in underground piping systems. It is designed to facilitate the seamless integration of micro-pipes, ensuring minimal leakage and structural integrity. Typically constructed from durable materials, these joints are resistant to environmental factors such as moisture and soil pressure.
| Product Name | Micro Duct Reducer Connector |
| Part No. | TJ06DBSxx |
| Outer diameter of pipe (mm) | Dia. 7/8/10/12/14 |
| Working with fluids | Air |
| Tightness | 0.15-0.8 Mpa |
| Pull test | 400N |
| Proof pressure | 2.5 Mpa |
| Operating pressure range | 0~1.6 Mpa |
| Ambient temperature | -40~+60℃ |
| Fluid temperature | -40~+60℃ |
| Protection level | IP68 |
| Insertion force | Max. 50N (5kgs) |
