TJ06FPFxx
The Micro Duct End Caps TJ06FPFxx serious is suitable for the Pipe made from PE. Nylon and Polyurethane. Contains the components of Button(POM) , Card(POM), Spring sleeve(OPM)/Zine parts(Zine), Circlip(SUS31/304), Retaining ring (POM) , O-ring(EPDM)/Seal ring(EPDM) and Plastic shell(PC).

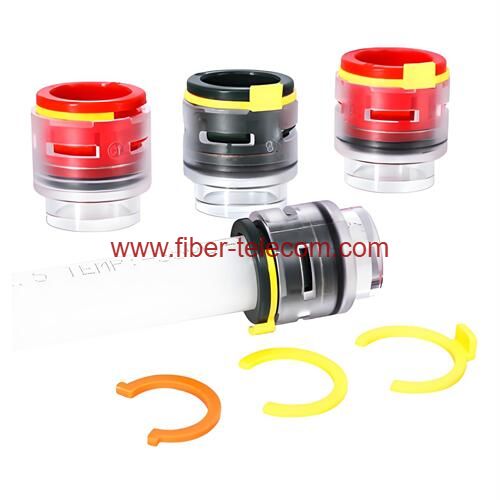

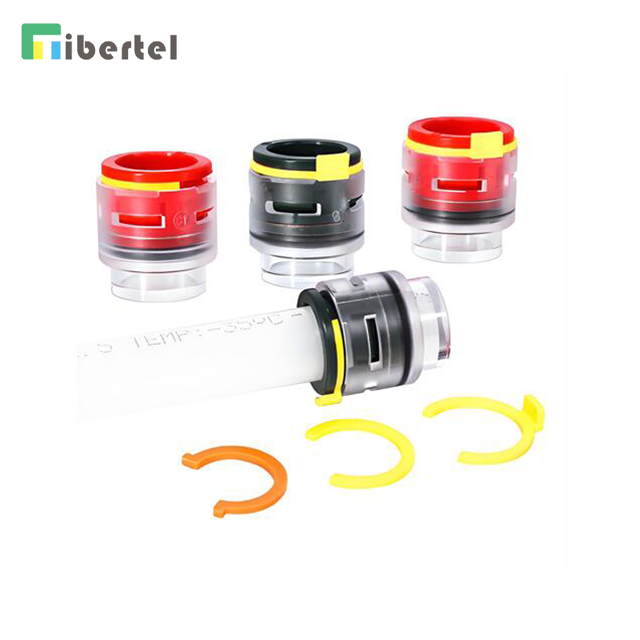

Standard transparent end caps, which are used to terminate open ended Tubes to avoid air leakage, water or other material ingress. End caps are preassembled with security clips.
MAIN FEATURES
Product Name | Micro Duct End Caps |
Part No. | TJ06FPFxx |
Outer diameter of pipe (mm) | Dia. 3/4/5/6/7/8/10/12/16/18/20 |
Working with fluids | Air |
Tightness | 0.15-0.8 Mpa |
Pull test | 400N |
Proof pressure | 2.5 Mpa |
Operating pressure range | 0~1.6 Mpa |
Ambient temperature | -40~+60℃ |
Fluid temperature | -40~+60℃ |
Protection level | IP68 |
Insertion force | Max. 50N (5kgs) |
Dimensions | |||
Part No. | Pipe OD/ID | Pipe OD/ID | Tapered hole |
TJ06FPF03 | 3 | // | // |
TJ06FPF10 | 10 | // | // |
TJ06FPF12 | 12 | // | // |
TJ06FPF14 | 14 | // | // |
TJ06FPF16 | 16 | // | // |
TJ06FPF18 | 18 | // | // |
TJ06FPF20 | 20 | // | // |
TJ06FPF04 | 4 | // | // |
TJ06FPF05 | 5 | // | // |
TJ06FPF06 | 6 | // | // |
TJ06FPF07 | 7 | // | // |
TJ06FPF08 | 8 | // | // |
The Micro Duct End Caps TJ06FPFxx serious is suitable for the Pipe made from PE. Nylon and Polyurethane. Contains the components of Button(POM) , Card(POM), Spring sleeve(OPM)/Zine parts(Zine), Circlip(SUS31/304), Retaining ring (POM) , O-ring(EPDM)/Seal ring(EPDM) and Plastic shell(PC).
Standard transparent end caps, which are used to terminate open ended Tubes to avoid air leakage, water or other material ingress. End caps are preassembled with security clips.
MAIN FEATURES
Product Name | Micro Duct End Caps |
Part No. | TJ06FPFxx |
Outer diameter of pipe (mm) | Dia. 3/4/5/6/7/8/10/12/16/18/20 |
Working with fluids | Air |
Tightness | 0.15-0.8 Mpa |
Pull test | 400N |
Proof pressure | 2.5 Mpa |
Operating pressure range | 0~1.6 Mpa |
Ambient temperature | -40~+60℃ |
Fluid temperature | -40~+60℃ |
Protection level | IP68 |
Insertion force | Max. 50N (5kgs) |
Dimensions | |||
Part No. | Pipe OD/ID | Pipe OD/ID | Tapered hole |
TJ06FPF03 | 3 | // | // |
TJ06FPF10 | 10 | // | // |
TJ06FPF12 | 12 | // | // |
TJ06FPF14 | 14 | // | // |
TJ06FPF16 | 16 | // | // |
TJ06FPF18 | 18 | // | // |
TJ06FPF20 | 20 | // | // |
TJ06FPF04 | 4 | // | // |
TJ06FPF05 | 5 | // | // |
TJ06FPF06 | 6 | // | // |
TJ06FPF07 | 7 | // | // |
TJ06FPF08 | 8 | // | // |
