TJ06DBExx
Fibertel

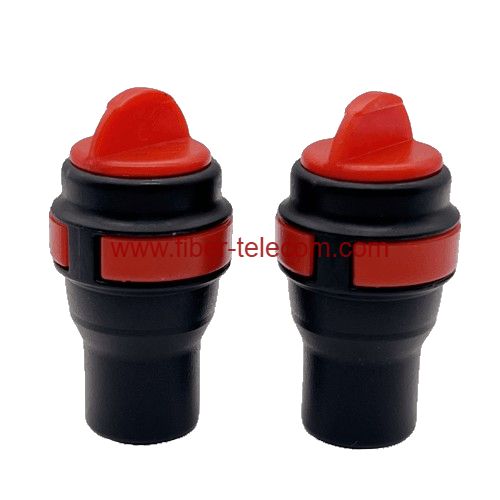

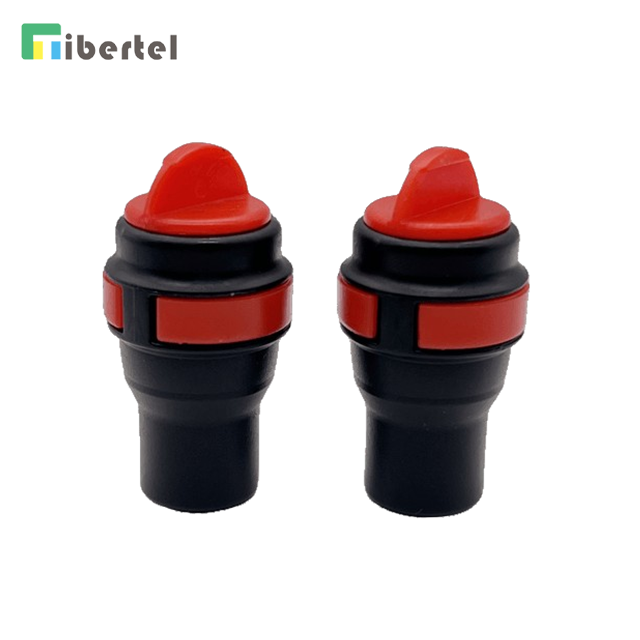

The Micro Duct Direct Buried End Stop TJ06DBExx serious is suitable for the Pipe made from PE. Nylon and Polyurethane. Contains the components of Button(POM) , Card(POM), Zine Parts (Zine), Circlip(SUS31/304), Retaining ring (POM), Seal ring(EPDM), Plastic shell(PC).
The direct buried microduct ens stop connector were developed connect microducts cut end. Our system enables an easy,fast connection and disconnection of the microduct. The direct buried end stop microduct connector robust construction resistance to high pressure forces, allowing them to be used in direct buried (DB) applications.
Product Name | Micro Duct Reducer Connector |
Part No. | TJ06DBExx |
Outer diameter of pipe (mm) | Dia. 7/8/10/12/14 |
Working with fluids | Air |
Tightness | 0.15-0.8 Mpa |
Pull test | 400N |
Proof pressure | 2.5 Mpa |
Operating pressure range | 0~1.6 Mpa |
Ambient temperature | -40~+60℃ |
Fluid temperature | -40~+60℃ |
Protection level | IP68 |
Insertion force | Max. 50N (5kgs) |
Dimensions | |||
Part No. | Diameter | Length | Cannula Size |
TJ06DBE07 | 19.9 | 39.5 | 7 |
TJ06DBE08 | 19.9 | 39.5 | 8 |
TJ06DBE10 | 22.8 | 44.1 | 10 |
TJ06DBE12 | 24.9 | 48.3 | 12 |
TJ06DBE14 | 27.9 | 52.5 | 14 |
