MPO to LC Breakout Cable

Delivery Date:15-working daysApplication:Telecommunications
Type:Male: with pin;  Female:without pinBrand Name:T&J
Number of Conductors:12-144 fibers availableOperating Temperature:-40 ~ +85℃
Name:MPO Break-out CableConnector type:MPO & LC/SC/FC connector
Fiber type:SM / MMFerrule polishing:PC/APC
Typical Insertion Loss(dB):0.35Testing Wavelength(nm):1310nm for SM; 850nm for MM
Origin:China

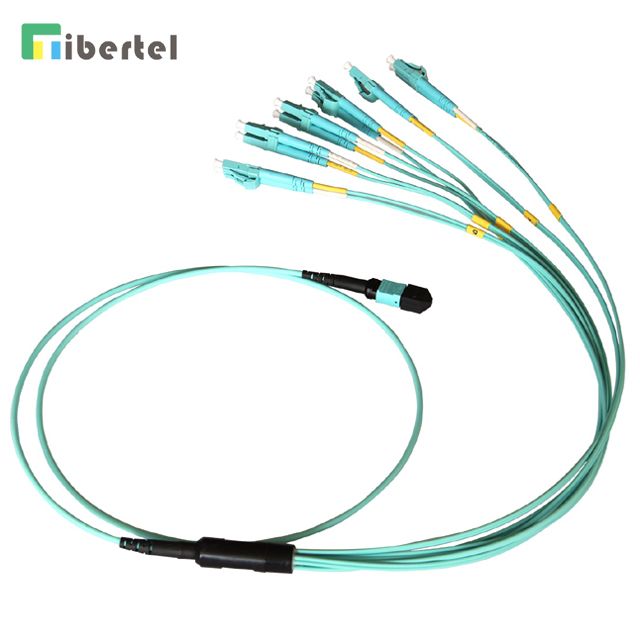

MPO-LC/SC/FC break-out cable provided by T&J Industrial Co., Ltd is with a 12 fibers or 24 fibers MPO connector on one end and LC/SC/FC connectors on the other end. The MPO-LC/SC/FC trunk cable is mainly used to connect directly from distribution center to the device or patch panel, and it can be also used as an extend cable of system expansion.



Features:

1.     12-144 fibers available.

2.     With a 12F or 24F MPO connector, perfectly reduce the breakdown and cabling space.

3.     Multi-Mode OM3/OM4, Single-Mode G625D, G657A2 on request.

4.     Mini-round cable, better bending radius, more convenience for installation and storage.

5.     With a dust-proof, crush resistance, tension resistance protection tube on both ends which can protect the fiber cable and connector from damage during transportation and installation.


Specifications:

MPO connector

Fiber Type
SMMM
Insertion LossTypical(dB)0.350.35
Max(dB)0.600.50
Return Loss(dB)≥60(APC)≥25(PC)
≥50(PC)
Male/FemaleM:with pin            F: without pin
Durability  (dB)≤0.2   200 mating
Working Temperature  (℃)-40 ~+85
Testing Wavelength  (nm)1310850

LS/SC/FC connectors

Fiber Count

12

24

48

72

96

144

Distribution Length(cm)

30~150

Max. Installation Tension(N)

500

500

700

700

700

700

Cable Max. Bending Radius (static)mm

10D

Cable Min. Bending Radius(dynamic)mm

20D

Working Temperature (℃):

-20℃~+60℃
