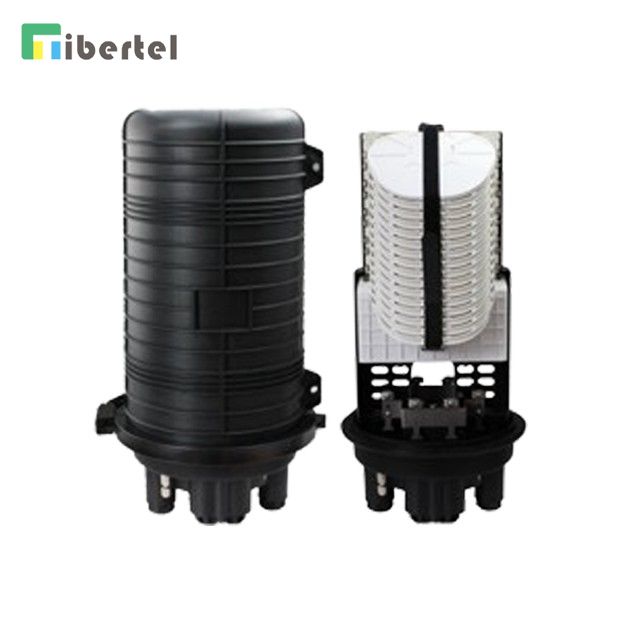

360 Cores DOME Type Fiber Optic Splice Closure TJ01E036M

TJ01E036M DOME type fiber optic splice closure is also called as vertical closure, it is suitable for FTTH accessing.
  • TJ01E036M

  • Fibertel

Availability:

Description

TJ01E036M DOME type fiber optic splice closure is also called as vertical closure, it is suitable for FTTH accessing.
The input and output are on the same side. One mid-span dual-hole and six mechanical round holes facilitates the operation. It is suitable for aerial, pole mount, underground, man hole installation.


Features
Full mechanical sealing structure.
High quality industrial plastic body material with UV resistance.
1 mid-span dual holes oval port for looped cable (10-18mm) and 6 round ports for drop cable (10-18mm).
Suitable for cable diameter 10mm-18mm .
Support aerial, pole-mount, underground, man hole installation.
Protection level reaches IP68.
360 degrees access, fiber bending > 40mm.
Maximum capacity: splice 720 fibers.

Number of splice trays: 60 pcs x 12F, or splice trays: 30pcs x 24F.



Configuration 1
Item
Description
Product Name
DOME type fiber optic splice closure
Part No.
TJ01E036M
Max Capacity
Splice 360 Cores(30x 12F Splice Trays)
Material
Strengthen Polymer Plastic
Cable Entrance
1 x mid-span dual ports(10- 18mm)+ 6 x round ports(10- 18mm)
Outside dimension (Height x Diameter)
530*310mm
Weight
6.8kg
Color
Black
Protection
IP68
Working temperature
-20℃ ~+60℃



Configuration 2
Item
Description
Product Name
DOME type fiber optic splice closure
Part No.
TJ01E036M
Max Capacity
Splice 360 Cores(15 x 24F Splice Trays)
each tray can place 1 x 1:8 or 1x1:16 PLC Splitter
Material
Strengthen Polymer Plastic
Cable Entrance
1 x mid-span dual ports(10- 18mm)+ 6 x round ports(10- 18mm)
Outside dimension (Height x Diameter)
530*310mm
Weight
6.8kg
Color
Black
Protection
IP68
Working temperature
-20℃ ~+60℃
