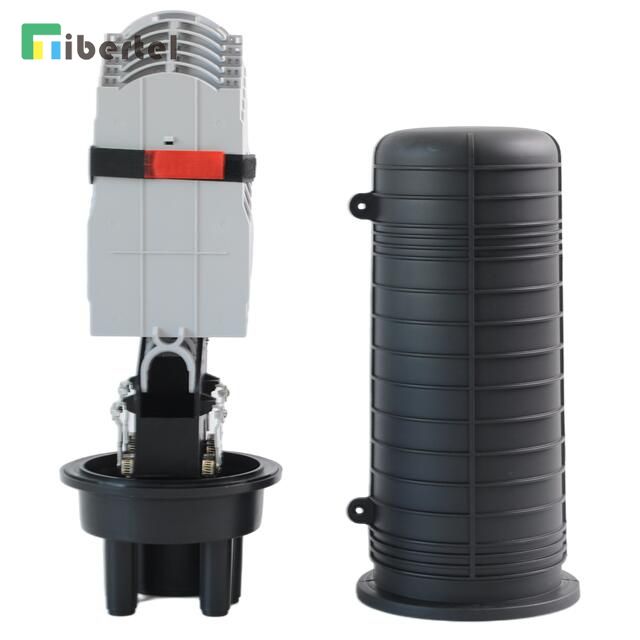

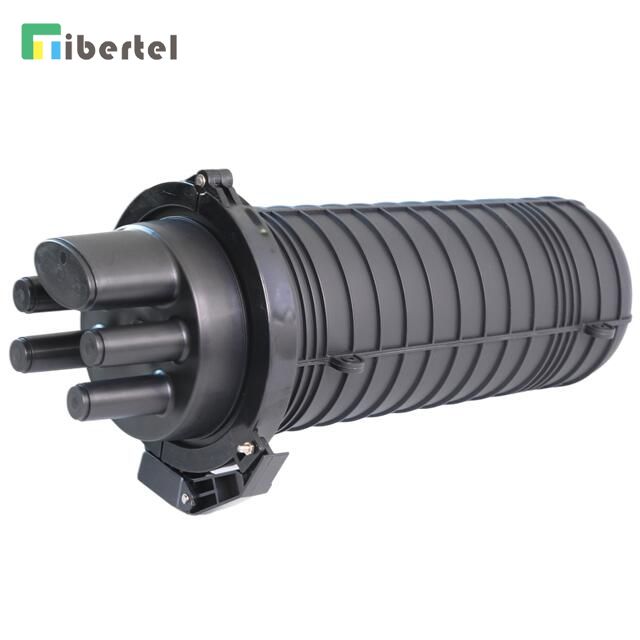

Vertical type Heat-shrink Optical Fiber Enclosure OFC-D022

  • TJ01E1222
Delivery Date:15-working daysBrand Name:T&J
Model:TJ01E1222Application:Aerial, Underground duct or Direct burial
Sealingstructure:Heat-shrinkable sealingDimention:dia.210x470mm
Cable ports:5Diameter of fiber cable:Φ8mm ~ Φ38mm
Max. capacity:144 bunchy fiberCompliant:RoHS
Weight (excluding outside box):3000g - 3600gOrigin:China

1. Scope of application

This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.



The scope of application is: aerial, underground, pipeline, hand-holes. The ambient temperature ranges from -40 to 65℃.



2. Basic structure and configuration

2.1 Dimension and capacity

Outside dimension (Height x Diameter)

470mm×210mm

Weight (excluding outside box)

3000g— 3600g

Number of inlet/out ports

5 pieces in general

Diameter of fiber cable

Φ8mm~Φ38mm

Capacity of FOSC

Bunchy:24-144 (cores), Ribbon: up to 288 (cores)



2.2 Main components

No.

Name   of components

Quantity

Usage

Remarks

1

FOSC   cover

1   piece

Protecting   fiber cable splices in whole

Height   x Diameter

450mm x 170mm

2

Fiber   optic splice tray (FOST)

Max. 4   trays (bunchy)

Max.:   4 trays  (ribbon)

Fixing   heat shrinkable protective sleeve and holding fibers

Suitable   for:

Bunchy:   24(cores) Ribbon: 12 (pieces)

3

Base

1set

Fixing   internal and external structure


4

Plastic   hoop

1 set

Fixing   between FOSC cover and base


5

Seal   fitting

1 piece

Sealing   between FOSC cover and base


6

Pressure   testing valve

1 set

After   inject air, it is used for  pressure   testing and sealing testing

Configuration   as per requirement

7

Earthing   deriving device

1 set

Deriving   metal parts of fiber cables in FOSC for earthing connection

Configuration   as per requirement

2.3 Main accessories and special tools

No.

Name   of accessories

Quantity

Usage

Remarks

1

Heat shrinkable protective sleeve


Protecting fiber splices

Configuration   as per capacity

2

Nylon tie


Fixing   fiber with protective coat

Configuration   as per capacity

3

Heat shrinkable fixing sleeve (elliptical)


Fixing and sealing single fiber cable

Configuration   as per requirement

4

Heat shrinkable fixing sleeve (circular)


Fixing and sealing mass of fiber cable

Configuration   as per requirement

5

Branching clip


Branching fiber cables

Configuration   as per requirement

6

Earthing wire

1 piece

Putting through between earthing devices


7

Desiccant

1 bag

Put into FOSC before sealing for   desiccating air.


8

Labeling paper

1 piece

Labeling fibers




10

Buffer tube



decided   by customers

Hitched to fibers and fixed with FOST,   managing buffer.

Configuration as per requirement

11

Aluminum foil paper

1piece

To protect the bottom of closure and   inlet/outlet tubes when heating heat shrinkable fixing sleeve with fire   sprays
