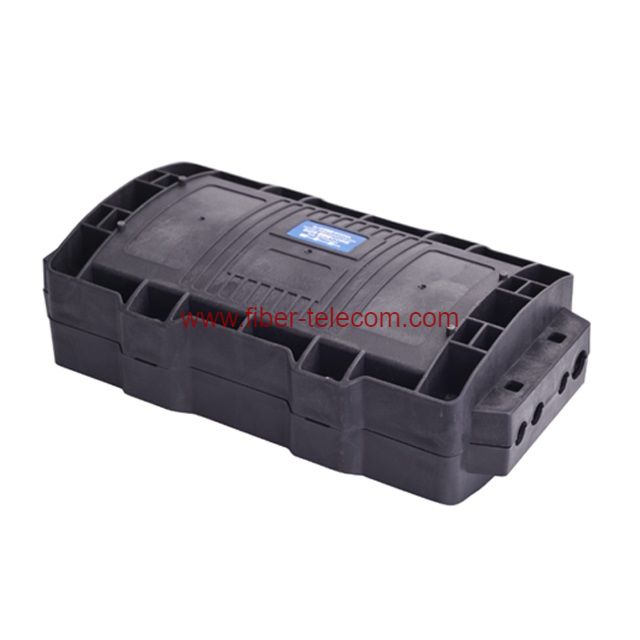

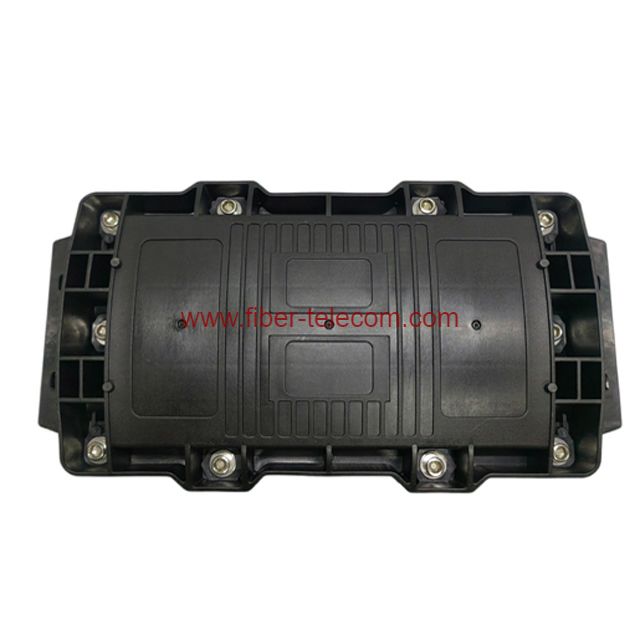

Fiber Optic Horizontal Enclosure

Home » Products » FTTx Solutions » Fiber optic enclosure » Fiber Optic Horizontal Enclosure

PRODUCTS

This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.

The scope of application is: aerial, duct mounting. The ambient temperature ranges from -45℃ to +65℃.

RECOMMRND PRODUCTS

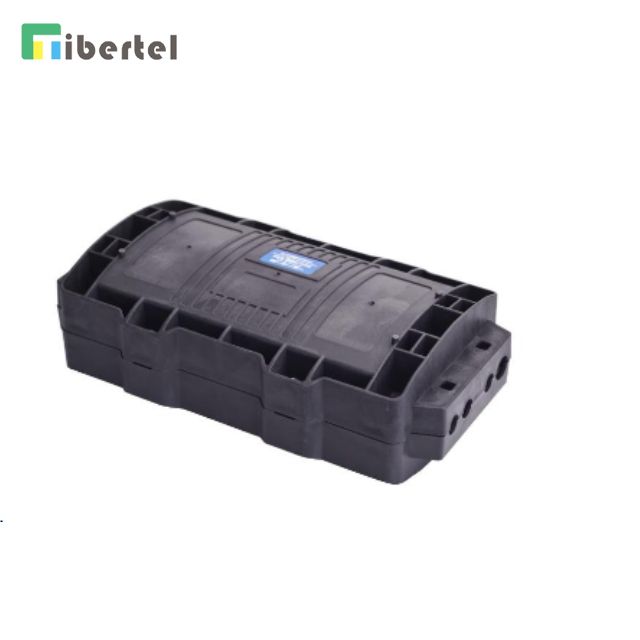

Part No.	TJ01E1111
Outside dimension (LxWxH)	340mm×180mm×110mm
Weight (excluding outside box)	1900-2300g
Number of inlet/outlet ports	4 (pieces) on each side (total 8 pieces)
Diameter of fiber cable	6 for φ6-8mm cables, 2 for φ9-12mm cables
Capacity of FOSC	Bunchy:12-48 cores

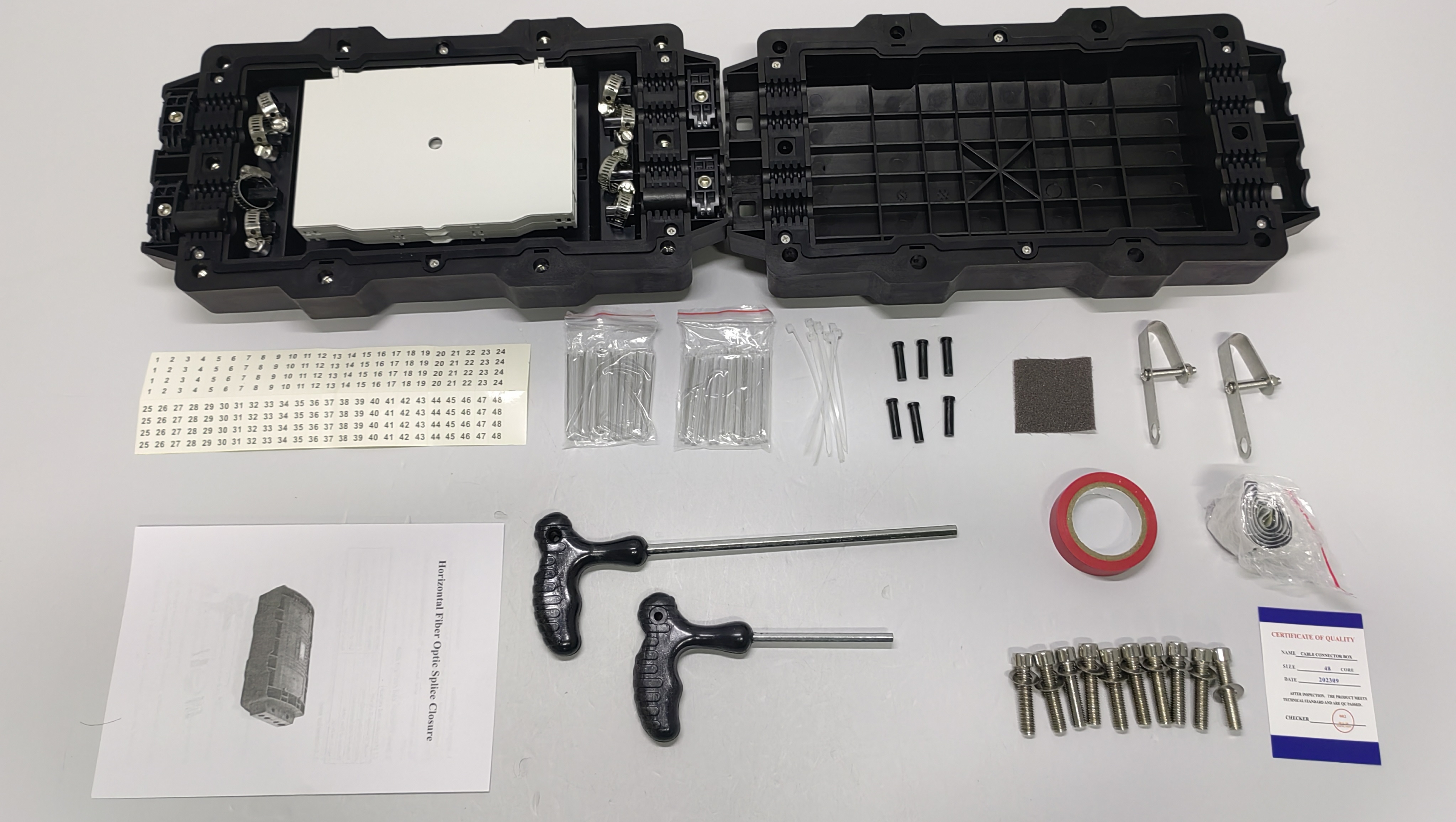

1	Pipe cutter	4	Band tape
2	Crossing/Paralleling screwdriver	5	Electrical cutter
3	Wrench	6	Stripper
