Scope of application
This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, wall-mounting. The ambient temperature ranges from -40 to 65℃.
Feature:
Very small dimension
Splicing design
Max.capacity: 12fibers
Dimension and capacity

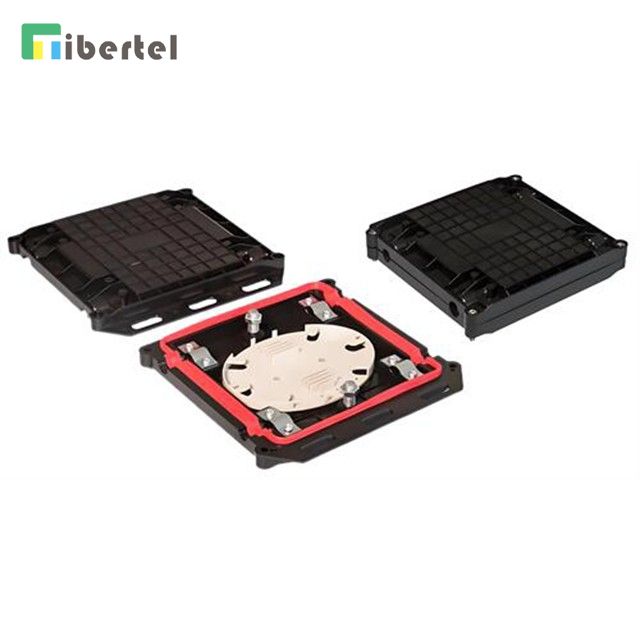

Model No. | TJ01E1401 |
Outside dimension (LxWxH) | 210x205x50 (mm) |
Weight (excluding outside box) | 1000g |
Number of inlet/outlet ports | 2 (pieces) on each side (total 4 pieces) |
Diameter of fiber cable | Φ8—Φ16 (mm) |
Capacity of FOSC | Bunchy: 12 (Cores) |
